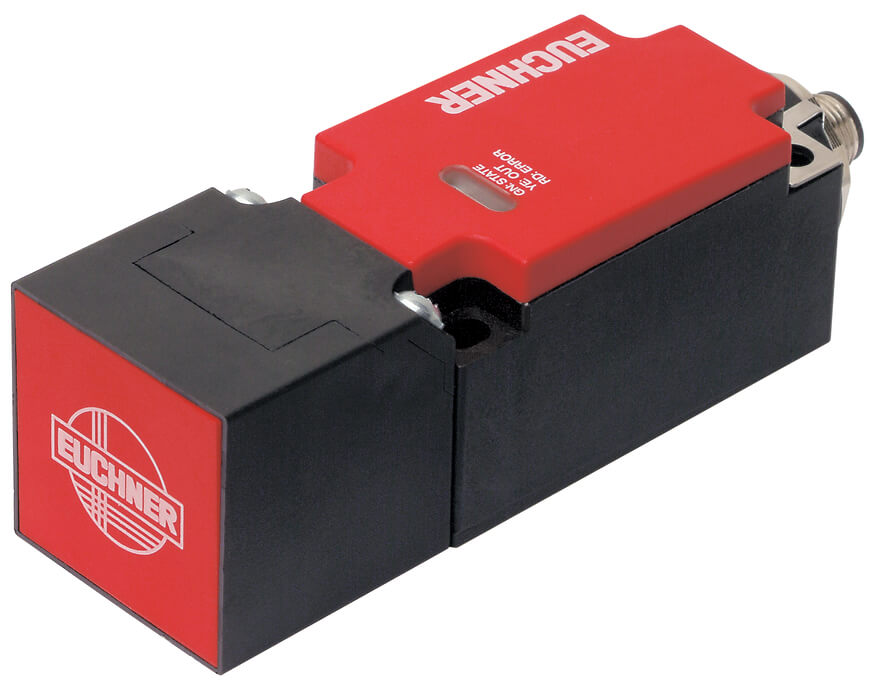

Approach directionCan be adjusted in 90° steps
Each actuator is unique. The evaluation unit detects only the actuator that has been taught-in. Additional actuators can be taught in.
Category according to EN ISO 13849-1Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for:
- Category 4/PL e according to EN ISO 13849-1
LED indicator
| STATE | Status LED |
| OUT/ERROR | Safety outputs status / diagnostics LED (combined) |
Additional connection
| OUT | Monitoring output (semiconductor) |
Attention:The operating distance may vary depending on the background material and installation situation.
(Only in combination with actuator CES-A-BBA, CES-A-BCA)
Typical operating distance
For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm must be maintained so that the operating distance of the side lobes is not entered.
(Only in combination with actuator CES-A-BPA)
Typical operating distance
For a side approach direction for the actuator and safety switch, a minimum distance of s = 6 mm must be maintained so that the operating distance of the side lobes is not entered.
| Dimensions | According to EN 60947-5-2: (LxWxH) 131x40x40 |
| Housing material | Plastic, PBT |
| Weight | |
| Net | 0,4 kg |
| Ambient temperature | |
| At UB = 24 V DC | -20 … 55 °C |
| Degree of protection | IP67 |
| Mounting distance | |
| Between 2 read heads or 2 actuators | min.80 mm |
| Installation orientation | Any |
| Tightening torque | |
| Screws fastening bracket read head | max.0,6 Nm |
| Fixing screws housing | max.1 Nm |
| Ready delay | max.3 s |
| Reaction time | |
| After change in the actuation status | max.180 ms |
| Switching frequency | max.1 Hz |
| Dwell time | min.0,5 s |
| Connection | M12 plug connector, 8-pin, screen can be applied |
Electrical connection ratings
| Operating voltage DC | 18 … 24 … 27 V DC Regulated, residual ripple < 5 % |
| Current consumption | 80 mA |
| Fusing | |
| (External) operating voltage | 0,25 … 8 A |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | max.1,5 kV |
| EMC protection requirements | In acc. with EN 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Safety outputs LA / LB | |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof, electrically decoupled |
| Output voltage | |
| HIGH U(LA) | U(+LA) — 1,5 … U(+LA) V DC |
| HIGH U(LB) | U(+LB) — 1,5 … U(+LB) V DC |
| LOW U(LA) / U(LB) | 0 … 1 V DC |
| Output current | |
| per safety output | 1 … 400 mA |
| Fusing | |
| External, safety circuit U(+LA) / U(+LB) | 0.4 A medium slow-blow |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 24V 400mA |
| Switching load | |
| According to UL | max. DC 24 V, class 2 |
| Rated conditional short-circuit current | max.100 A |
| Discrepancy time | |
| (Between the operating points of both safety outputs) | max.120 ms |
| Power supply output load | |
| U(+LA) / U(+LB) | 24 V DC 18 … 27 V DC |
| Monitoring output OUT | |
| Type of output | Semiconductor output, p-switching, short circuit-proof |
| Output voltage | 0,8 x UB … UB V DC |
| Output current | max.20 mA |
| STATE LED | |
| LED indicator | Status — LED |
| LED OUT / ERROR | |
| LED indicator | Safety outputs status / diagnostics (combined) |
Work area
| Repeat accuracy R | max.10 % |
Other
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.7 x 10-9 |
| Diagnostic Coverage (DC) | 99 % |
| Mission time | 20 y |
In combination with Actuator CES-A-BPAOperating distance
| Distance s, actuator | |
| Minimum distance for side approach direction | min.6 mm |
| Switch-on distance | |
| With center offset m=0 | 22 mm |
| Assured switch-off distance Sar | max.58 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.15 mm |
| Switching hysteresis | min.1 mm |
In combination with Actuator CES-A-BDA-20Operating distance
| Distance s, actuator | |
| Minimum distance for side approach direction | min.5 mm |
| Switch-on distance | |
| With center offset m=0 | 21 mm |
| Assured switch-off distance Sar | max.41 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.19 mm |
| Switching hysteresis | min.2 mm |
In combination with Actuator CES-A-BBA, CES-A-BCAOperating distance
| Distance s, actuator | |
| Minimum distance for side approach direction | min.4 mm |
| Switch-on distance | |
| With center offset m=0 | 20 mm |
| Assured switch-off distance Sar | max.40 mm |
| Assured operating distance Sao | |
| With center offset m=0 | min.18 mm |
| Switching hysteresis | min.2 mm |
