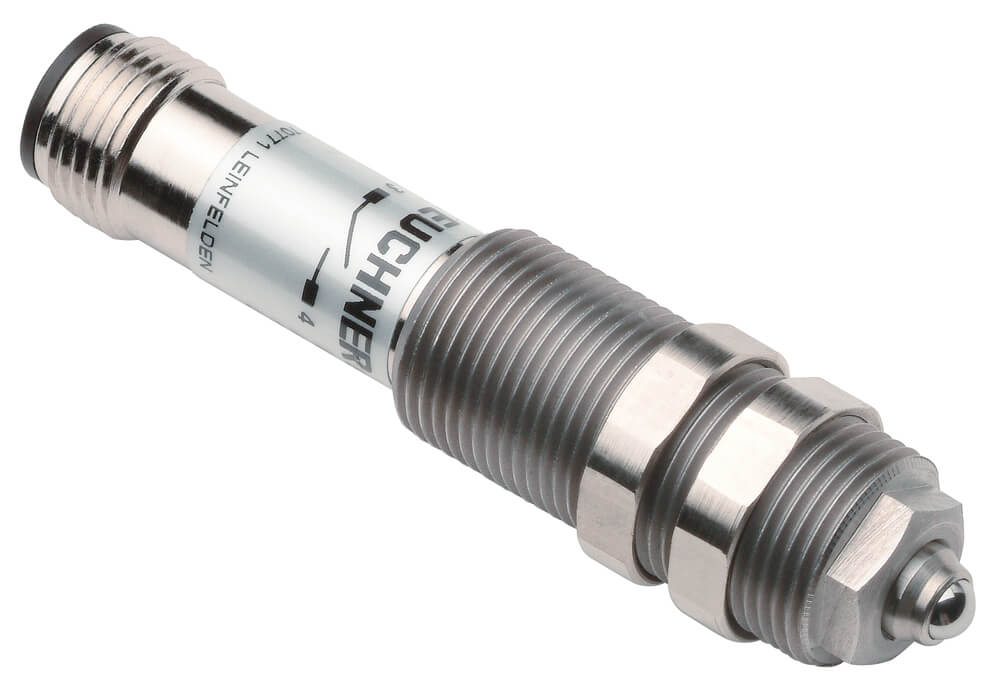

Switching elementReed contact, 1 NO contact
Never switch incandescent lamps. Not even for test purposes. Single hole fixing limit switches must not be used as an end stop.
Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment
| Design | Thread M14 x 1 |
| Housing material | |
| Sleeve | Plastic |
| Threaded section | Stainless steel |
| Ambient temperature | |
| Cable static | -25 … 80 °C |
| Degree of protection | IP68 |
| Mechanical life | 30 x 106 |
| Contact material | Rhodium |
| Switching principle | Reed contact |
| Repeat accuracy (absolute) | ±0,01 mm |
| Installation orientation | Any |
| Number of NO contacts | 1 |
| Connection | PUR cable |
| Cable length | 2 m |
| Approach speed | max.8 m/min |
| Actuating element | Ball plunger |
| Actuating force | |
| Approx. | 16 N |
Electrical connection ratings
| Utilization category according to EN 60947-5-1 | |
| DC-13 | 0.3A 24V |
| AC-12 | 0.03A 230V |
| Short circuit protection according to IEC 60269-1 | 0.4A gG |
| Rated insulation voltage Ui | 250 V |
| Switching voltage | |
| min. | 1 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Connection cross-section | 0,5 mm? |
