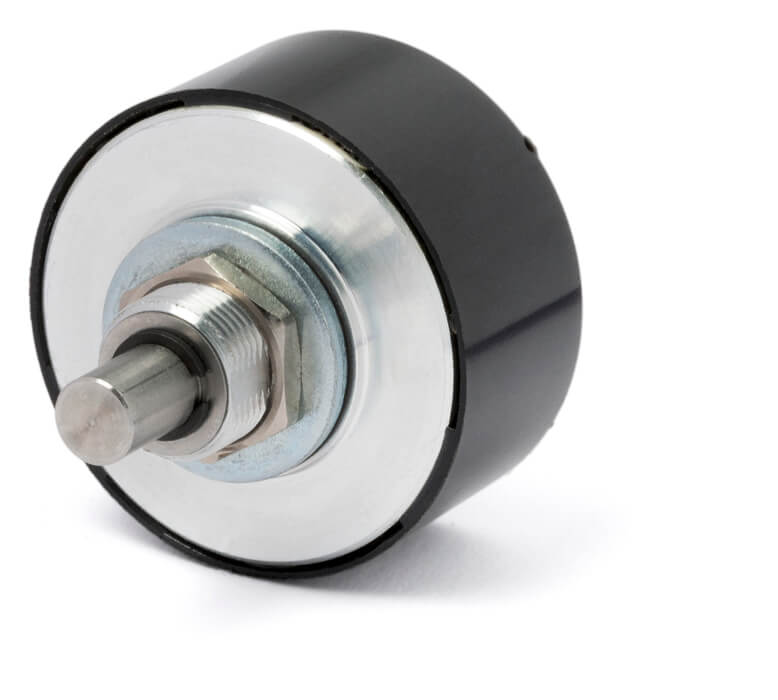

Notes
- Output A05 suitable for Siemens control systems with RS422 input
Dimension drawing
Wiring diagram
Ausgangssignale
Hand-held pendant stations and hand wheels
Dimension drawingWiring diagramAusgangssignale
Technical dataApprovals
Mechanical values and environment
| Material | Aluminum |
| Weight | |
| Net | 0.095 |
| Ambient temperature | 0 … 50 °C |
| Atmospheric humidity | |
| (condensation not permissible) | 0.8 |
| Degree of protection | |
| IEC 529 | IP65 |
| acc. to NEMA 250 | 250-12 |
| Resilience to vibration | |
| Vibration (3 axes) | DIN/IEC 68-2-6 |
| Shock (3 axes) | DIN/IEC 68-2-27 |
| Tightening torque | max.0,25 Nm |
| Connection | Screw terminal |
| Detent positions per revolution | 100 |
Electrical connection ratings
| Operating voltage DC | 5 V DC -5% … 5% |
| Current consumption | |
| Without load | max.80 mA |
| EMC protection requirements | |
| Acc. to CE | EN 61000-6-2, EN 61000-6-4 |
| Type of output | RS422 |
| Connection cross-section | 0,08 … 1,5 mm? |
| Connection cross-section, AWG | 28 … 16 AWG |
| Pulses per revolution | 2×100 |
| Output voltage | In accordance with RS422A |
Other
| Detent mechanism | Magnetic |
