Notes
- Output G05 suitable for Fanuc control systems
- Packaging unit 10 pieces
Dimension drawing
Dimension drawing
Wiring diagram
Ausgangssignale

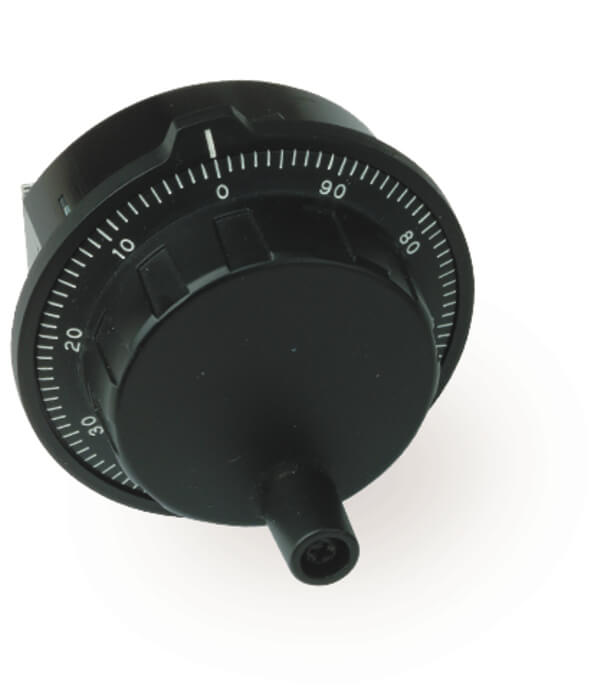

Hand-held pendant stations and hand wheels
Dimension drawingDimension drawingWiring diagramAusgangssignale
Technical dataApprovals
Mechanical values and environment
| Material | Plastic |
| Weight | |
| Net | 0.1 |
| Ambient temperature | 0 … 50 °C |
| Atmospheric humidity | |
| (condensation not permissible) | 0.8 |
| Degree of protection | |
| IEC 529 | IP65 |
| acc. to NEMA 250 | 250-12 |
| Mechanical life | 1 x 106 |
| Connection | Screw terminals 4-pole |
| Detent positions per revolution | 100 |
Electrical connection ratings
| Operating voltage DC | 5 V DC -10% … 10% |
| Current consumption | |
| Without load | max.80 mA |
| Type of output | Push-pull |
| Pulses per revolution | 2×100 |
| Output voltage | |
| High(1) | min.4,0 V DC at 20 mA |
| Low(0) | max.0,5 V DC at 20 mA |
Other
| Additional feature | |
| Front panel thickness | 1.5 — 2.0mm |
| Detent mechanism | Mechanical |
| Packaging unit | 10 |
