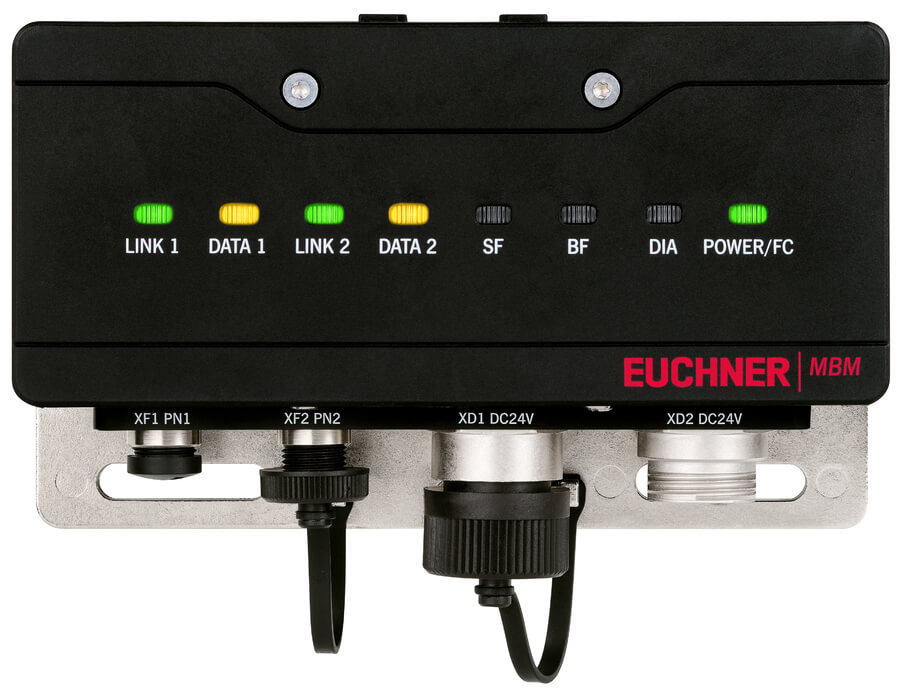

PROFINET interface
Plug connector M12 D-coded (7/8″ plug and M12 plug, D-coded) according to IEC 61076-2-101
PROFINET switch
Linear topology network structure due to integrated switch (supports MRP).
MLI connections (module plug connector)
An MGB2 Modular or an MCM Modular can be connected directly to a bus module (direct plug). Alternatively, the modules can be connected using commercially available connecting cables M12, 5-core (cable connect).
Dimension drawing
Dimension drawing
MGB2 Modular: an overview
Dimension drawingDimension drawing
Technical dataApprovals
Mechanical values and environment
| Housing material | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
| Weight | |
| Net | 0,85 kg |
| Ambient temperature | |
| At UB = 24V DC | -25 … 55 °C |
| Degree of protection | IP65 |
| Resilience to vibration | In acc. with EN 60947-5-3 |
| Installation orientation | Any |
| Connection | |
| 7/8″ Power | |
| 7/8″ Power | |
| Acc. to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12 D-coded, screened |
| M12 D-coded, screened | |
| ML1C / ML2C | |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Insertion cycles | 100 |
| Connection | Screw terminal |
| Connection type | Plug |
| Number of pins | 5 |
| ML1D | |
| Insertion cycles | 100 |
| Connection | Connector (unlocked) |
| Connection type | Plug |
| Number of pins | 5 |
Electrical connection ratings
| Current consumption | max.150 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Maximum feed-in current in the connection block | |
| XD1, XD2 | max.6000 mA |
| EMC protection requirements | EMC directive 2014/30/EU |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | |
| MLI | 5-pin, M12x1 |
| Safety class | III |
Interface, bus
| Data interface | |
| Data protocol | |
| Bus protocol | Profinet (IEC 61158 type 10) |
| Safety protocol | Profisafe (IEC 61784-3-3) |
Reliability values according to EN ISO 13849-1
| Performance Level | PL e |
| PFHD | 1.14 x 108 |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Mission time | 20 |
