Function
The MCM Modular can be connected directly or remotely to the bus module and in this way can be operated as a control terminal. It can also be used as an expansion for the control features on a locking module. The MCM Modular offers four slots for mounting submodules.
Expandable via connection on the top
Either a module plug connector or a plug for the direct connection of a signal light with up to four lamps can be used on the top of the MCM.
Dimension drawing
MGB2 Modular: an overview
Dimension drawing
Technical dataMechanical values and environment
| Installation orientation | Any |
Extension module MCM-MLI-Y00000000-JJ-157854 (Order no. 157854)
Mechanical values and environment
| Housing material | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
| Weight | |
| Net | 0,8 kg |
| Ambient temperature | |
| At UB = 24V DC | -25 … 55 °C |
| Degree of protection | IP65 |
| Resilience to vibration | In acc. with EN 60947-5-3 |
| Mechanical life | 1 x 106 |
| Switching frequency | 0,25 Hz |
Electrical connection ratings
| Current consumption | max.75 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| EMC protection requirements | EMC directive 2014/30/EU |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Safety class | III |
| Power supply MLI | |
| Operating voltage DC | |
| MLI | 24 V DC -25% … 15% |
| Auxiliary voltage DC | |
| MLI | 24 V DC -25% … 15% |
Reliability values according to EN ISO 13849-1
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Mission time | 20 |
Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)
Mechanical values and environment
| Material | Fiber glass reinforced plastic |
| Weight | |
| Net | 0,05 kg |
| Ambient temperature | |
| At UB = 24V DC | -25 … 55 °C |
| Resilience to vibration | In acc. with EN 60947-5-3 |
| Installation orientation | Any |
Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)
Mechanical values and environment
| Material | Fiber glass reinforced plastic |
| Weight | |
| Net | 0,05 kg |
| Ambient temperature | |
| At UB = 24V DC | -25 … 55 °C |
| Resilience to vibration | In acc. with EN 60947-5-3 |
| Installation orientation | Any |
Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)
Mechanical values and environment
| Material | Fiber glass reinforced plastic |
| Weight | |
| Net | 0,05 kg |
| Ambient temperature | |
| At UB = 24V DC | -25 … 55 °C |
| Resilience to vibration | In acc. with EN 60947-5-3 |
| Installation orientation | Any |
Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)
Mechanical values and environment
| Material | Fiber glass reinforced plastic |
| Weight | |
| Net | 0,05 kg |
| Ambient temperature | |
| At UB = 24V DC | -25 … 55 °C |
| Resilience to vibration | In acc. with EN 60947-5-3 |
| Installation orientation | Any |
Module connector AC-MC-SB-M-A-157024 (Order no. 157024)
Mechanical values and environment
| Weight | |
| Net | 0,05 kg |
| Ambient temperature | -25 … 90 °C |
| Connection 1 | |
| Degree of protection | IP65 |
| Insertion cycles | 100 |
| Connection | 2x M4 screws |
| Connection type | Plug |
| Number of pins | 5 |
| Plug housing material | Plastic |
| Connection 2 | |
| Degree of protection | IP65 |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Plug lock material | Die-cast zinc, nickel-plated |
| Insertion cycles | 100 |
| Connection | Screw terminal |
| Connection type | Plug |
| Number of pins | 5 |
| Plug housing material | Plastic, die-cast zinc, nickel plated |
Electrical connection ratings
| Rated voltage | 30 V |
| Nominal current | |
| At 40°C | 4 A |
| Rated voltage | 36 V |
| Degree of contamination according to EN 60664-1 | 3 |
| Connecting cable | |
| MLI | 5-pin, M12x1 |
AC-MC-00-0-B-156718 (Order no. 156718)
Mechanical values and environment
| Material | Fiber glass reinforced plastic |
| Weight | |
| Net | 0,05 kg |
| Ambient temperature | -25 … 90 °C |
| Connection 1 | |
| Degree of protection | IP65 |
| Connection | 2x M4 screws |
Electrical connection ratings
| Degree of contamination according to EN 60664-1 | 3 |
Other
| Additional feature | |
| Incl. fixing screws | |
| Incl. seal | |
| Color | Black |
Components
157854

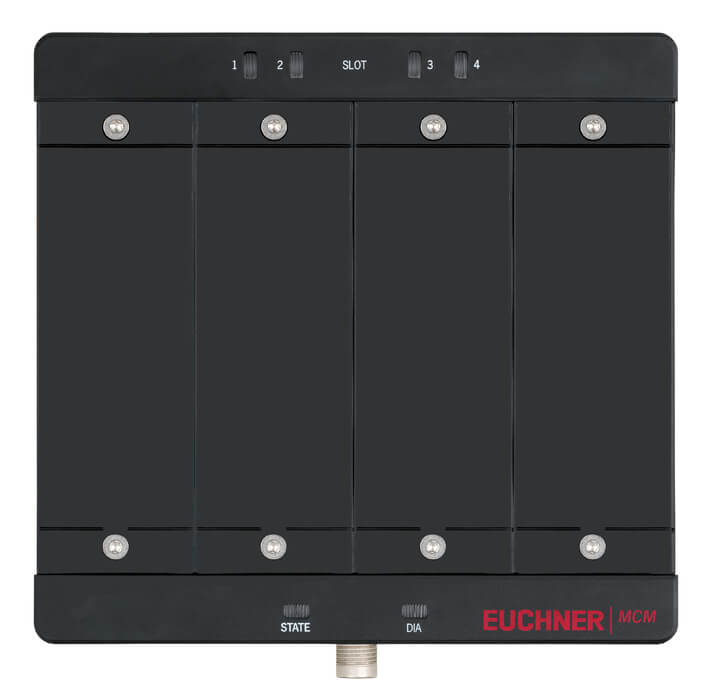

Extension module MCM-MLI-Y00000000-JJ-157854
- Function expansion for bus module MBM and locking module MGB2-L.-MLI
- Four slots for mounting submodules
- Category 4/PL e for the evaluation of all safety functions
- Open version (without submodules)
- Submodule connection type: N/P
- Compatible with all Modular devices
126372
Submodule MSM-1-N-AA-000-A4-126372
- Function expansion for modules MGB2 and MCM
- Connection type: N
- Blanking cover
126372
Submodule MSM-1-N-AA-000-A4-126372
- Function expansion for modules MGB2 and MCM
- Connection type: N
- Blanking cover
126372
Submodule MSM-1-N-AA-000-A4-126372
- Function expansion for modules MGB2 and MCM
- Connection type: N
- Blanking cover
126372
Submodule MSM-1-N-AA-000-A4-126372
- Function expansion for modules MGB2 and MCM
- Connection type: N
- Blanking cover
157024
Module connector AC-MC-SB-M-A-157024
- Module plug connector MLI (M12), straight
- Number of pins: 5-pin , plug
156718
AC-MC-00-0-B-156718
- Cover for unused connections
- incl. fixing screws
- incl. seal
