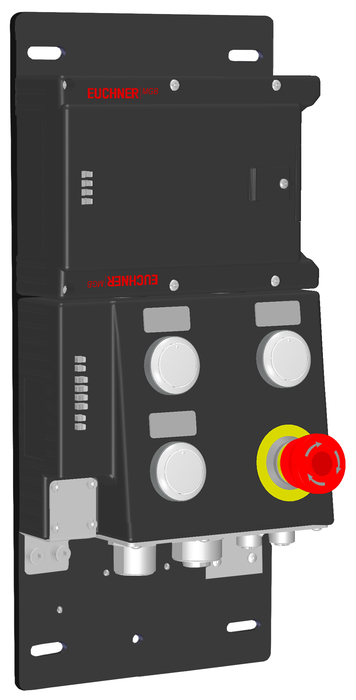

Profinet connection
7/8″ plugs according to ANSI/B93.55M-1981 and M12 plugs (d-coded) according to IEC 61076-2-101
Profinet RT switch
Point-to-point topology network structure due to integrated RT switch.
Flexible usage as interlocking or guard locking
By means of the corresponding evaluation of the safe device data by the control system, usage can be either as interlocking or guard locking (with or without monitoring).
Illuminated emergency stop
Emergency stop with illumination that can be controlled as required.
Dimension drawing
Dimension drawing
Technical dataApprovals
Mechanical values and environment
| Housing material | Reinforced plastic, die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 3,1 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 … 55 °C |
| Degree of protection | IP54 |
| Resilience to vibration | In accordance with EN 60947-5-3 |
| Mechanical life | 1 x 106 |
| In case of use as door stop, and 1 Joule impact energy | 0,1 x 106 |
| Installation orientation | Door hinge DIN right |
| Reaction time | |
| Emergency stop / machine stop | max.250 ms Switch-off time |
| Door position | max.550 ms Switch-off time |
| Bolt position | max.550 ms Switch-off time |
| Guard locking | max.550 ms Switch-off time |
| Switching frequency | 0,25 Hz |
| Connection | |
| 7/8″ Power | |
| 7/8″ Power | |
| Acc. to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12 D-coded, screened |
| M12 D-coded, screened | |
| Guard locking principle | Closed-circuit current principle |
| Locking force FZh | 2000 N |
Electrical connection ratings
| Current consumption | max.500 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 0,5 kV |
| Maximum feed-in current in the connection block | |
| X1, X2 | max.4000 mA |
| EMC protection requirements | In accordance with EN 61000-4 and EN 61326-3-1 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | |
| Ethernet | Profinet I/O cable, at least cat. 5e |
| Safety class | III |
| Transponder coding | Multicode |
| Power supply X1 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
| Fusing | |
| external | min.1 A Slow blow |
| Power supply X2 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
Work area
| Assured switch-off distance Sar | max.65 mm |
Interface, bus
| Data interface | |
| Data protocol | |
| Bus protocol | Profinet (IEC 61158 type 10) |
| Safety protocol | Profisafe (IEC 61784-3-3) |
Controls and indicators
| Belegungsschema | B1 |
| Belegungsschema | L0 |
| Position 90 | |
| Ausfuhrung | Illuminated push buttons |
| Einlegeschild | |
| Extras | |
| Farbe | |
| Schaltelement | 1NO |
| Position 92 | |
| Ausfuhrung | Illuminated push buttons |
| Einlegeschild | |
| Extras | |
| Farbe | |
| Schaltelement | 1NO |
| Position 93 | |
| Ausfuhrung | Emergency stop illuminated |
| Einlegeschild | |
| Extras | With adhesive ring |
| Farbe | |
| Schaltelement | 2 pos. driven NC |
| Position 95 | |
| Ausfuhrung | Illuminated push buttons |
| Einlegeschild | |
| Extras | |
| Farbe | |
| Schaltelement | 1NO |
Other
| Additional feature | Incl. cover set ID. No. 120344 |
| Product version number | V3.30.10 |
| Slide-in label | 3 pc. without marking |
Reliability values according to EN ISO 13849-1
| Monitoring of guard locking and the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.07 x 10-8 |
| Diagnostic Coverage (DC) | 99 |
| Control of the guard locking | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.91 x 10-8 |
| Emergency stop | |
| B10D | |
| Emergency stop | 0.1 x 106 |
| Emergency-stop evaluation | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.1 x 10-8 |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Mission time | 20 |
