Technical data

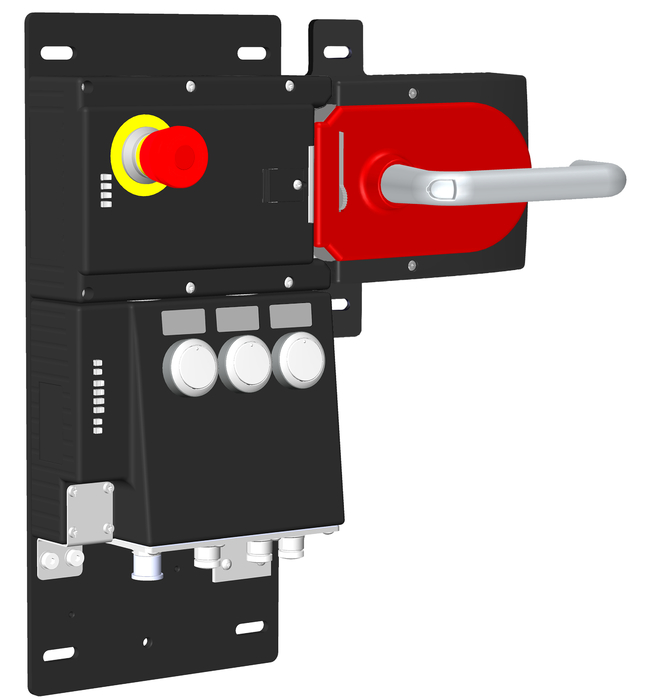

Locking module MGB-L1B-EIA-R-128323 (Order no. 128323)
Mechanical values and environment
| Housing material | Reinforced plastic, die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 3,1 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 … 55 °C |
| Degree of protection | IP54 |
| Resilience to vibration | In accordance with EN 60947-5-3 |
| Mechanical life | 1 x 106 |
| In case of use as door stop, and 1 Joule impact energy | 0,1 x 106 |
| Installation orientation | Door hinge DIN right |
| Reaction time | |
| Door position | max.250 ms Switch-off time |
| Bolt position | max.250 ms Switch-off time |
| Guard locking | max.250 ms Switch-off time |
| Switching frequency | 0,25 Hz |
| Connection | |
| M12 Power, A-coded | |
| M12 Power, A-coded | |
| Ethernet/IP cable, Cat. 5e min. | M12 D-coded, screened |
| M12 D-coded, screened | |
| Guard locking principle | Closed-circuit current principle |
| Locking force FZh | 2000 N |
Electrical connection ratings
| Current consumption | max.500 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 0,5 kV |
| Maximum feed-in current in the connection block | |
| X1, X2 | max.4000 mA |
| EMC protection requirements | In accordance with EN 61000-4 and EN 61326-3-1 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | |
| Ethernet | Ethernet/IP cable, Cat. 5e min. |
| Safety class | III |
| Transponder coding | Unicode |
| Power supply X1 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
| Fusing | |
| external | min.1 A Slow blow |
| Power supply X2 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
Work area
| Assured switch-off distance Sar | max.65 mm |
Interface, bus
| Data interface | |
| Data protocol | |
| Bus protocol | Ethernet/IP |
| Safety protocol | CIP Safety |
Other
| Additional feature | |
| Incl. cover set ID. No. 120344 | |
| Incl. cover set ID. No. 120377 | |
| Product version number | V1.2 |
Reliability values according to EN ISO 13849-1
| Monitoring of guard locking and the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.37 x 10-9 |
| Diagnostic Coverage (DC) | 99 |
| Control of the guard locking | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.91 x 10-9 |
| Emergency stop | |
| B10D | |
| Emergency stop | 0.1 x 106 |
| Emergency-stop evaluation | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.05 x 10-9 |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Mission time | 20 |
Handle module MGB-H-AA1A6-R-111838 (Order no. 111838)
Mechanical values and environment
| Housing material | Reinforced plastic, die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 1,00 kg |
| Ambient temperature | -20 … 55 °C |
| Degree of protection | IP65 |
| Installation orientation | Door hinge DIN right |
Other
| Additional feature | With mounting plate and automatic lockout mechanism |
| Product version number | V3.0.0 |
Components
128323
Locking module MGB-L1B-EIA-R-128323
- Guard locking with guard lock monitoring
- Emergency stop according to ISO 13850, illuminated
- 3 illuminated pushbuttons
- Including adhesive labels
- Connection via M12 plug
- Pre-assembled on mounting plates
- Unicode
111838
Handle module MGB-H-AA1A6-R-111838
- Intelligent bolt tongue
- Fold-out lockout mechanism
- Second automatically extending lockout mechanism
- Door handle
- Mounting plate
