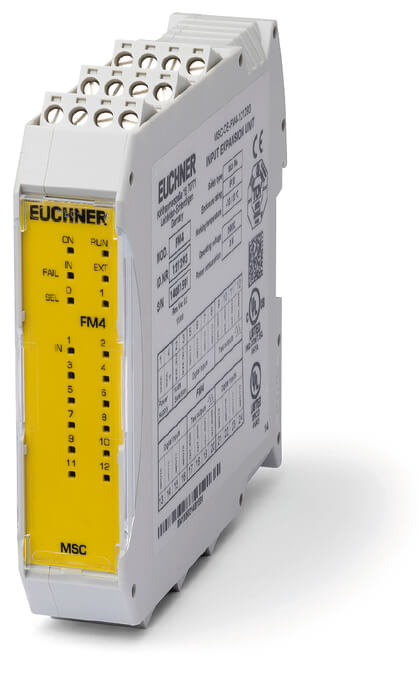

Expansion device with four pressure-sensitive mat inputs.
| Dimensions | 108 x 22.5 x 114.5 |
| Material | |
| Housing | Polyamide |
| Ambient temperature | -10 … +55 °C |
| Atmospheric humidity | 10 … 95 % rH |
| Degree of protection | IP20 |
| Mounting method | Mounting rail 35mm |
| Connection | Plug-in screw terminal |
| Cable length | max.100 m 1mm2.’> |
| Pulse output 1…8 | |
| Number of outputs | 8 |
| Safety input 1…12 | |
| Number of inputs | 12 |
| For node selection | |
| Number of inputs | 2 |
Electrical connection ratings
| Operating voltage DC | |
| UB | 24 V DC -20% … +20% PELV |
| Overvoltage category according to IEC EN 60664-1 | II |
| Degree of contamination according to EN 60664-1 | 2 |
| Connection cross-section | 0,5 … 2,5 mm? Screw terminal |
| Delay time | 0,0106 … 0,0546 s + filter time |
| Power consumption | max.3 W |
| Pulse output 1…8 | |
| Test pulses | 0,2 ms |
| Type of output | Semiconductor outputs, p-switching |
| Safety input 1…12 | |
| Type of input | Semiconductor inputs, p-switching |
| For node selection | |
| Type of input | Semiconductor inputs, p-switching |
Reliability values according to EN ISO 13849-1
| ESPE type | 4 |
| Performance Level | PL e |
| Category | 4 |
| PFHD | 5.56E-09 1/h |
| SIL CL | 3 |
| Mission time | 20 y |
