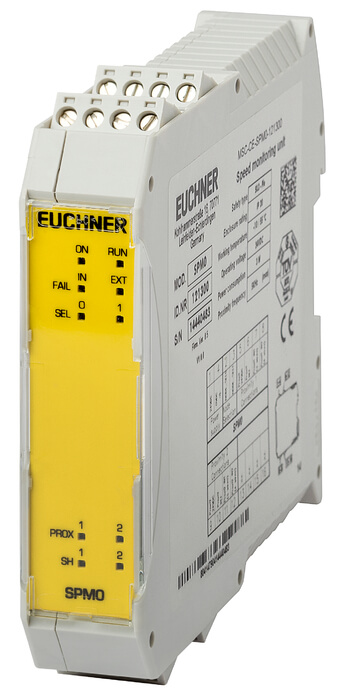

Expansion device with two inputs for proximity switches.
| Dimensions | 108 x 22.5 x 114.5 |
| Material | |
| Housing | Polyamide |
| Ambient temperature | -10 … +55 °C |
| Atmospheric humidity | 10 … 95 % rH |
| Degree of protection | IP20 |
| Mounting method | Mounting rail 35mm |
| Proximity switch | |
| Number of axes | 2 |
| Connection | 2 Plug-in terminal |
Electrical connection ratings
| Operating voltage DC | |
| UB | 24 V DC -20% … +20% PELV |
| Overvoltage category according to IEC EN 60664-1 | II |
| Degree of contamination according to EN 60664-1 | 2 |
| Connection cross-section | 0,5 … 2,5 mm? Screw terminal |
| Delay time | 0,0106 … 0,0546 s + input filter |
| Power consumption | max.3 W |
| Proximity switch | |
| Spacing limits | min.5 % |
| Number | 2 |
| Frequency | 5 |
| Frequency spacing | min.10 Hz |
| Limit range | 1 Hz — 4 kHz |
| Type of input | PNP / NPN -3/4-wires |
Reliability values according to EN ISO 13849-1
| Performance Level | PL e |
| Category | 4 |
| PFHD | 5.98E-09 1/h |
| Mission time | 20 y |
