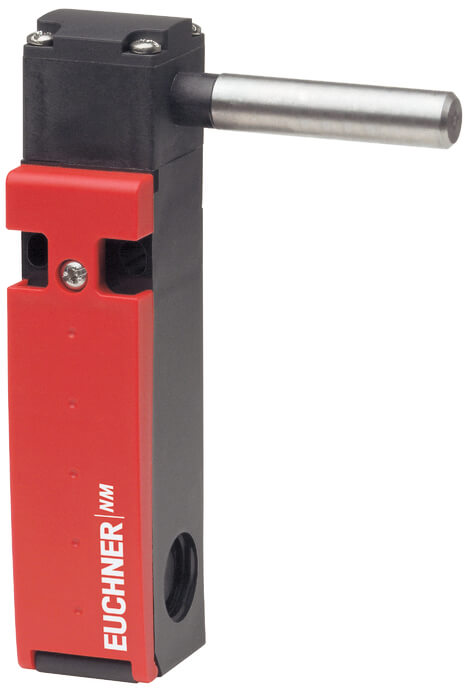

Switching element
| ES02 | Slow-action switching contact 2 NC |
| Design | Long housing |
| Housing material | Reinforced thermoplastic |
| Weight | |
| Net | 0,1 kg |
| Ambient temperature | -20 … 60 °C |
| Degree of protection | IP67 |
| Mechanical life | 4 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | 2 |
| Connection | |
| 1 x | Plug connector SM4 |
| Approach speed | |
| max. | 60 m/min |
| Actuating element | |
| Plain bearing plastic | Hinged actuator solid shaft |
| Actuation frequency | 5000 1/h |
| Actuating torque | 0,1 Nm |
Electrical connection ratings
| Thermal rated current Ith | 1,5 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 1.5A 230V |
| DC-13 | 1.5A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 1A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| B10D | 20 x 106 |
