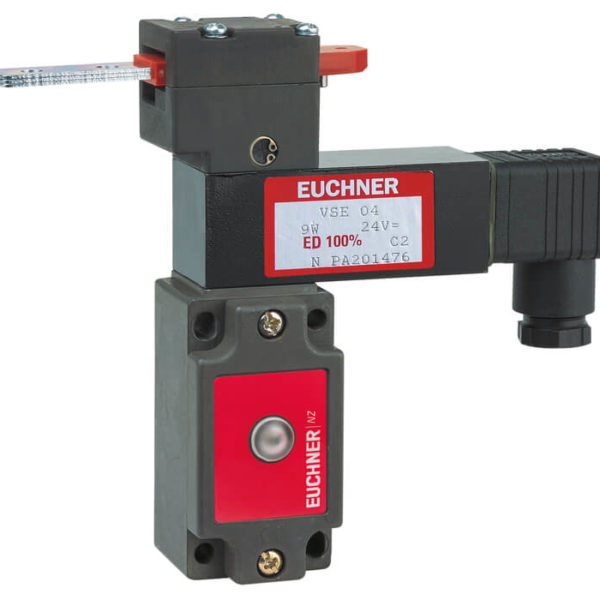

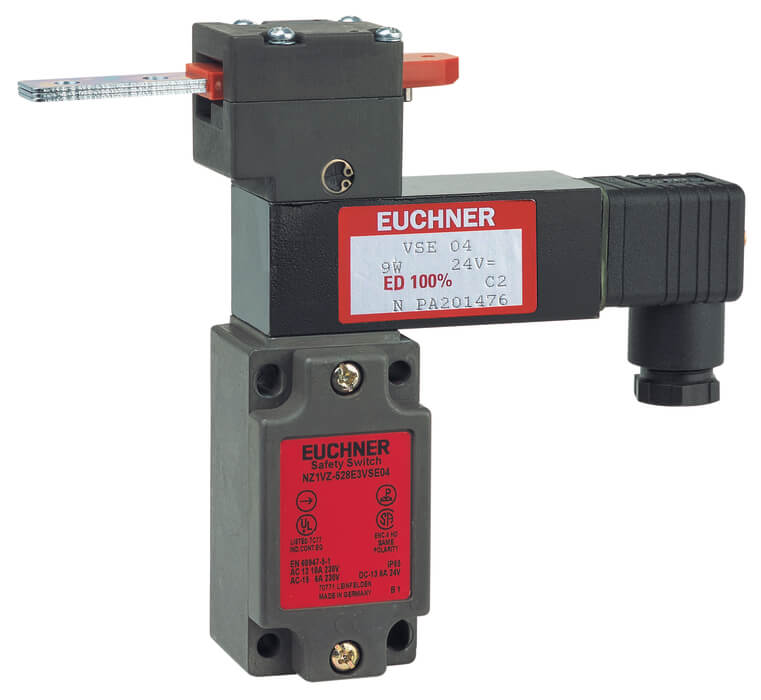

Approach direction
Horizontal
Can be adjusted in 90° steps
Guard locking type
| VSM | Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid. |
Switching element
| 528H | Slow-action switching contact 1 NC + 1 NO |
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,7 kg |
| Ambient temperature | -25 … 80 °C |
| Degree of protection | IP65 |
| Mechanical life | 2 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Solenoid alignment | 3 |
| Installation orientation | Any |
| Number of door position positively driven contacts | 1 |
| Number of door position NO contacts | 1 |
| Connection | |
| 1 x | M20 x 1.5 |
| Approach speed | max.20 m/min |
| Actuation frequency | 1200 1/h |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Retention force | 35 N |
| Extraction force | 40 N |
| Actuating force | 45 N |
| Insertion depth | 52 mm |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 4A 230V |
| DC-13 | 4A 24V |
| Solenoid operating voltage | |
| AC | 230 V -15 … 10 |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | |
| AC/DC | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Connection cross-section | 0,34 … 1,5 mm? |
Reliability values according to EN ISO 13849-1
| Control of the guard locking | |
| Category | Depending on external control of guard locking |
| Performance Level | Depending on external control of guard locking |
| PFHD | Depending on external control of guard locking |
| Monitoring of the position of the safety guard | |
| B10D | 4,5 x 106 |
In combination with Actuator BETAETIGER-Z-GNMechanical values and environment
| Overtravel | 16 mm |
In combination with Actuator BETAETIGER-Z-GMechanical values and environment
| Overtravel | 4 mm |
