Approach direction
Horizontal
Can be adjusted in 90° steps
Solenoid operating voltage and LED function display
- 24 V AC/DC -15%, +10%
Guard locking type
| TZ2 | Open-circuit current principle, guard locking by applying voltage to the solenoid. Release by spring force. |
Switching elements
| SK | For monitoring the door/actuator position |
| UK | For monitoring the guard locking (built-in solenoid) |
| 2131H | Slow-action switching contact 3 NC + 1 NO |
| 3131H | Slow-action switching contact 2 NC + 2 NO |
Auxiliary releaseIs used for releasing the guard locking with the aid of a tool. Sealing can be fitted to protect against tampering. Lead seal kit and tool included (already pre-assembled on versions with plug connectors).

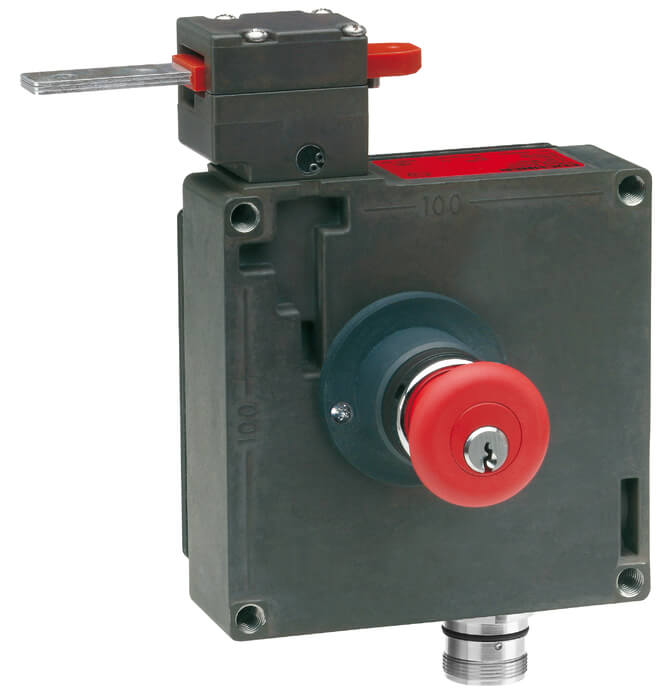

Escape releaseThis is used for manual release of guard locking from within the danger area without tools. The disable can only be removed and the switch returned to its operating state using a key included (2 keys included).
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 1,2 kg |
| Ambient temperature | -25 … 80 °C |
| Degree of protection | IP65 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | 3 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Number of guard lock monitoring NO contacts | 2 |
| Connection | |
| 1 x | Plug connector RC18 |
| Approach speed | max.20 m/min |
| Actuation frequency | 1200 1/h |
| Guard locking principle | Open-circuit current principle |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Retention force | 10 N |
| Extraction force | 30 N |
| Actuating force | 35 N |
| Insertion depth | min.52 mm |
| Cover lid | Black |
Electrical connection ratings
| Thermal rated current Ith | 4 A 70°C => 2A’> |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 4A 110V 70°C => 2A’> |
| DC-13 | 4A 24V 70°C => 2A’> |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% … +10% |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG 70°C => 2A gG’> |
| Rated insulation voltage Ui | 110 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Power consumption | 10 W |
| Solenoid duty cycle | 100 % |
| LED indicator | Operating voltage corresponds to the solenoid voltage |
Other
| C number | |
| C1828 | With escape release, special wiring |
Reliability values according to EN ISO 13849-1
| Monitoring of guard locking and the safety guard position | |
| B10D | 3 x 106 |
In combination with Actuator BETAETIGER-Z-GNMechanical values and environment
| Overtravel | 16 mm |
In combination with Actuator BETAETIGER-Z-GMechanical values and environment
| Overtravel | 4 mm |
