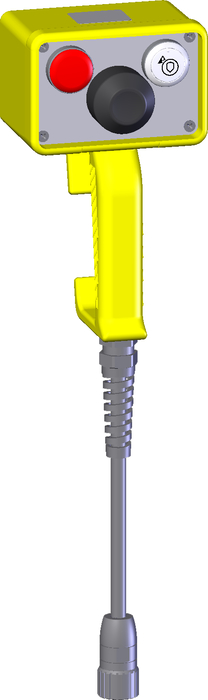

Cable
The high quality connection cables (individual screening of the safety contacts) are available straight.
3-stage function
Enabling function is active only in the second stage (middle position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).
Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment
| Material | |
| Housing | Plastic yellow |
| Cap | Elastomer PAK arm, black |
| Weight | |
| Net | 2,5 kg |
| Ambient temperature | -5 … 50 °C |
| Degree of protection | IP65 |
| Mechanical life | |
| Position 1-2-3-1 | min.0,1 x 106 |
| Position 1-2-1 | min.0,1 x 106 |
| Switching principle | Slow-action contact element |
| Number of positively driven contacts | 2 |
| Number of NO contacts | 2 |
| Connection | Plug connector number of pins 12 |
| Cable length | |
| straight | 10 m |
Electrical connection ratings
| Rated conditional short-circuit current | 100 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 2A 24V |
| 100mA 24V | |
| DC-13 | 2A 24V |
| 100mA 24V | |
| Short circuit protection according to IEC 60269-1 | |
| at 24V | 2A gG |
| Additional elements at 24V | 0.1A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 0,8 kV |
| Switching voltage | |
| Min. at 10mA | min.12 V |
| Switching current | |
| Min. at 24 V | min.1 mA |
| Degree of contamination (external, according to EN 60947-1) | |
| Industry | 3 |
| Connecting cable | 8×0.5mm? + 8×0.14mm? |
Other
| Additional feature | |
| Version | 1 illuminated pushbutton |
| 1 signal lamp |
Reliability values according to EN ISO 13849-1
| Enabling switch | |
| B10D | 0,5 x 106 |
