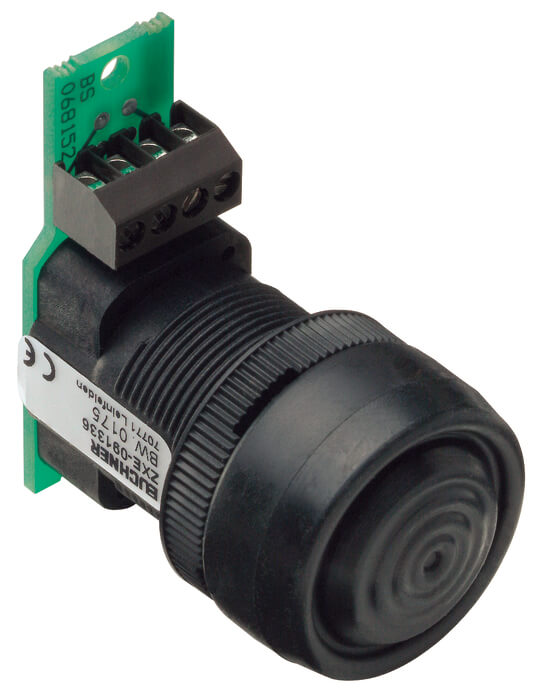

3-stage function
Enabling function is active only in the second stage (middle position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).
Switching element
| 2202 | 2NO/NC 1) From position 1 to position 2 –> NO contact; from position 2 to position 3 –> NC contact. |
Dimension drawing
2202
Dimension drawing2202
Technical dataApprovals
Mechanical values and environment
| Rated actuating force according to EN 60947-5-8 | max.100 N |
| Material | |
| Protective cap | CR |
| Housing material | Polyamide |
| Weight | |
| Net | 0,03 kg |
| Ambient temperature | -5 … 60 °C |
| Degree of protection | |
| On the front | IP65 |
| Connections | IP00 |
| Mechanical life | |
| Position 1-2-1 | min.0,1 x 106 cycles |
| Position 1-2-3-1 | min.0,1 x 106 cycles |
| Installation orientation | Any |
| Tightening torque | |
| Screws | max.0,15 Nm |
| Number of switching elements | 2 NO |
| Connection | Screw terminal 4-pole |
| Stripping length | 5 mm |
| Actuating force | max.50 N |
Electrical connection ratings
| Rated conditional short-circuit current | 100 A |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 0.1A 24V |
| Fusing | |
| external | 0,1 A Medium slow-blow |
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching current | 5 … 100 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection cross-section | |
| single conductor | 0,33 … 1,5 mm? |
| multiple conductor | 0,33 … 0,75 mm? |
| Connection cross-section, AWG | |
| single conductor | 22 … 16 AWG |
| multiple conductor | 22 … 18 AWG |
| Breaking capacity | max.0,25 W |
Other
| In compliance with | DIN EN 60947-5-8 |
| Color | |
| Housing | Black |
| Protective cap | Black |
Reliability values according to EN ISO 13849-1
| B10D | 0,75 x 106 |
