Notes

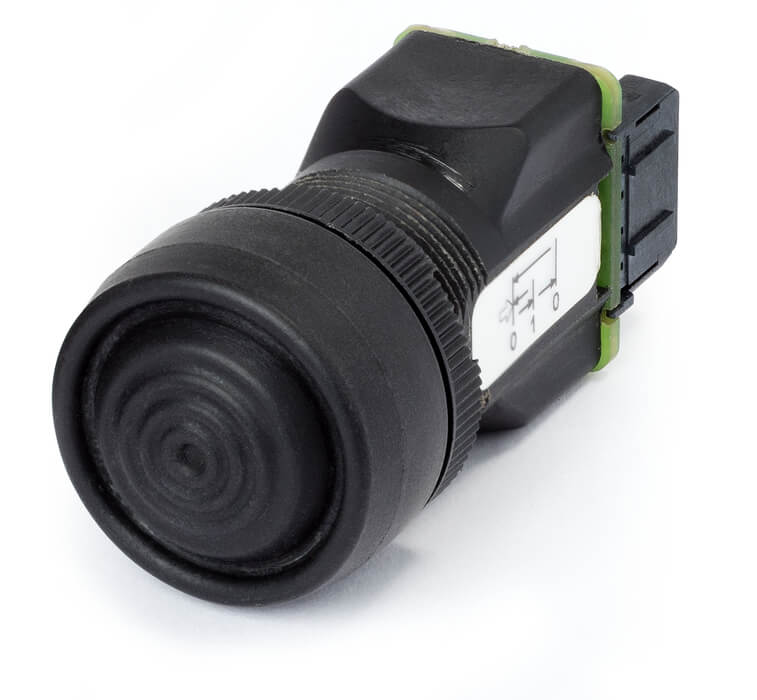

- Enabling switch ZXE-111276 for use in housing HBA/HBM
- A click sounds during the change from stage 1 to stage 2 and during the return from stage 2 to stage 1.
Switching element
| 2202 | 2NO/NC 1) From position 1 to position 2 –> NO contact; from position 2 to position 3 –> NC contact. |
3-stage function
Enabling function is active only in the second stage (middle position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).
Dimension drawing
2202
Dimension drawing2202
Technical dataApprovals
Mechanical values and environment
| Rated actuating force according to EN 60947-5-8 | max.100 N |
| Material | |
| Protective cap | CR, color black |
| Housing material | Polyamide, color black |
| Weight | |
| Net | 0,03 kg |
| Ambient temperature | -5 … 60 °C |
| Degree of protection | |
| On the front | IP65 |
| Connections | IP00 |
| Mechanical life | |
| Position 1-2-1 | min.0,1 x 106 cycles |
| Position 1-2-3-1 | min.0,1 x 106 cycles |
| Installation orientation | Any |
| Number of switching elements | 2 NO |
| Connection | Plug connector 4-pin |
| Stripping length | 5 mm |
| Actuating force | max.50 N |
Electrical connection ratings
| Rated conditional short-circuit current | 100 A |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 0.1A 24V |
| Fusing | |
| external | 0,1 A Medium slow-blow |
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching current | 5 … 100 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | |
| Single-conductor, in mm | 0,3 … 1,4 |
| AWG | 16 … 22 |
| Connection cross-section | |
| super fine strands | 1 mm? |
| single conductor | 1,5 mm? |
| Connection cross-section, AWG | 16 AWG |
| Breaking capacity | max.0,25 W |
Other
| Additional feature | Click |
| In compliance with | DIN EN 60947-5-8 |
| Color | |
| Housing | Black |
| Protective cap | Black |
Reliability values according to EN ISO 13849-1
| B10D | 0,75 x 106 |
