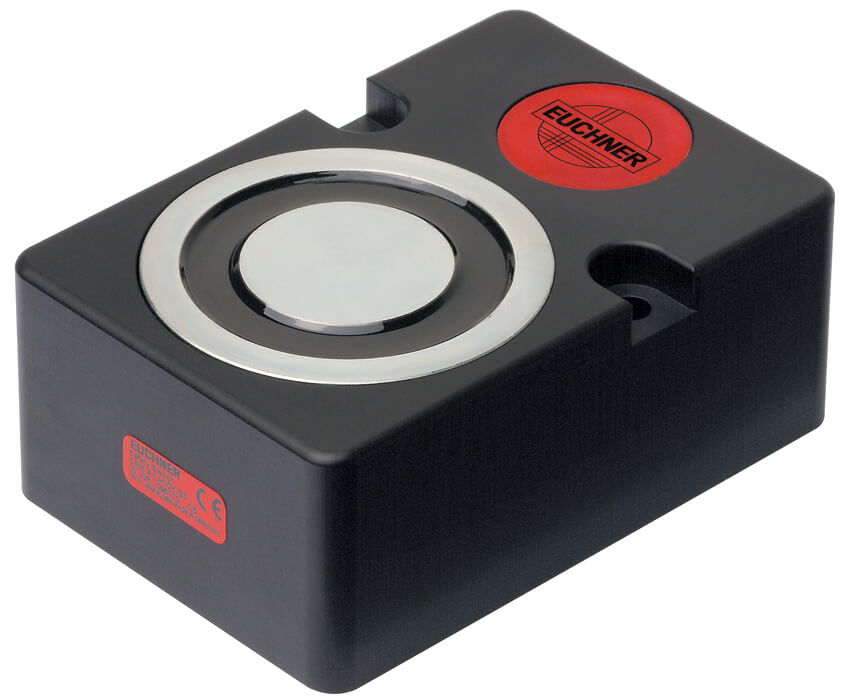

Without remanenceRead heads without remanence are de-magnetized when the solenoid is switched off. For this purpose the operating voltage UB must always be applied.
Approach direction
Typical operating distance
Note assured switch-off distance sar = 20 mm for internal component failure. Safety outputs are reliably switched off.
Dimension drawing
| Material | |
| Solenoid | Steel, nickel-plated |
| Housing material | Die-cast aluminum |
| Read head material | Plastic (PPS) |
| Weight | |
| Net | 0,9 kg |
| Ambient temperature | -25 … 50 °C |
| Degree of protection | IP67 |
| Mechanical life | |
| In case of use as door stop, and 1 Joule impact energy | 1 x 106 |
| Installation orientation | Any |
| Switching frequency | |
| Read head | See operating instructions for the related evaluation unit |
| Solenoid | max.2 Hz |
| Connection | |
| X3, read head | Plug connector M8x1, 3-pin male (with snap-action / screw terminal) |
| X2, external LED | Plug connector M8x1, 4-pin female (with screw terminal) |
| X1, solenoid (yellow LED integrated in the plug) | Plug connector M8x1, 4-pin male (with snap-action / screw terminal) |
| Cable length | max.25 m |
| Guard locking principle | Open-circuit current principle |
| Locking force F | |
| (Not monitored, in axial direction) at UCM?24V | 1000 N |
| Adhesive force | |
| due to remanence | 0,7 N |
Electrical connection ratings
| Operating voltage DC | |
| UB | 24 V DC -15% … 10% |
| UCM | 24 V DC -15% … 10% |
| Current consumption | |
| On UB at UCM?0V | 12 mA |
| On UB at UCM?24V | 225 mA |
| On UCM at 24V | 15 mA |
| Power consumption | 5,8 W |
| Solenoid duty cycle | 100 % |
Work area
| Switching hysteresis | 0,7 mm |
| Assured switch-off distance Sar | max.20 mm |
| Assured operating distance Sao | min.2 mm |
| Center offset | -2,5 … +2,5 mm |
