Dimension drawing
Wiring diagram
Wiring diagram
Dimension drawingWiring diagramWiring diagram

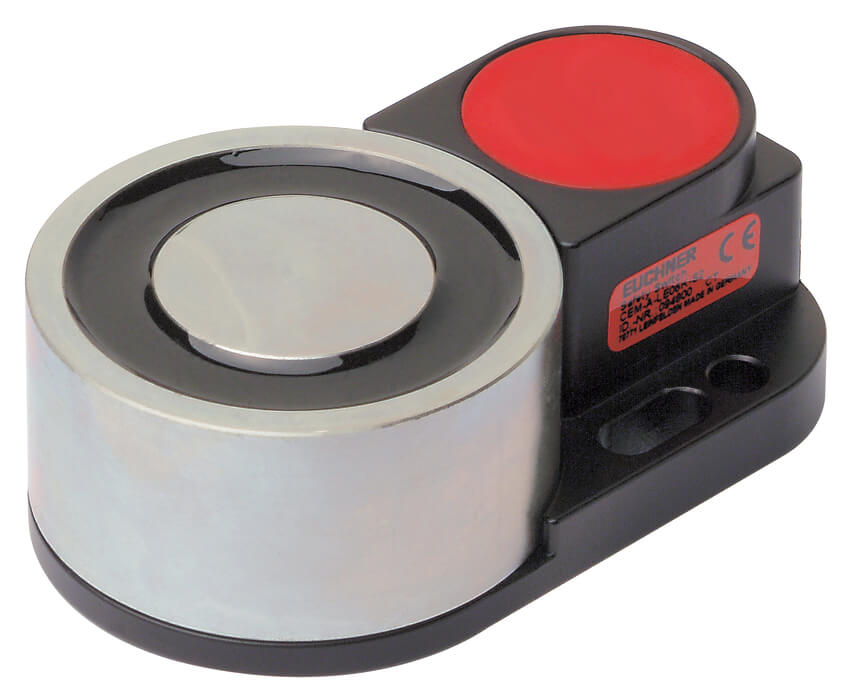

Technical dataApprovals
Mechanical values and environment
| Material | |
| Cover | Plastic (PPS) |
| Solenoid | Steel, nickel-plated |
| Housing material | Die-cast aluminum |
| Weight | |
| Net | 0,3 kg |
| Ambient temperature | -25 … 50 °C |
| Degree of protection | IP67 |
| Mechanical life | |
| In case of use as door stop, and 1 Joule impact energy | 1 x 106 |
| Installation orientation | Any |
| Connection | |
| X1, solenoid (yellow LED integrated in the plug) | Plug connector M8x1, 4-pin male (with snap-action / screw terminal) |
| Guard locking principle | Open-circuit current principle |
| Locking force F | |
| (Not monitored, in axial direction) at UCM?24V | 650 N |
| Adhesive force | |
| due to remanence | 10 N -25% … +25% |
Electrical connection ratings
| Operating voltage DC | |
| UCM | 24 V DC -15% … 10% |
| Current consumption | |
| UB | 100 mA |
| Power consumption | 2,5 W |
| Solenoid duty cycle | 100 % |
Work area
| Center offset | -2,5 … +2,5 mm |
