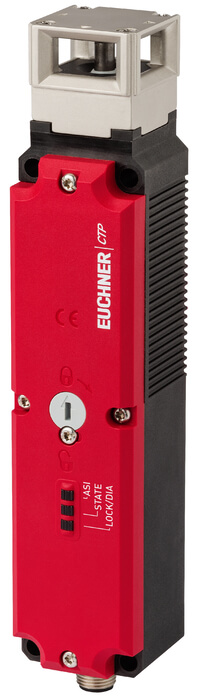

Approach direction
Horizontal
Can be adjusted in 90° steps
Guard locking type
| CTP?L2 | Guard locking actuated by power-ON applied and spring released (open-circuit current principle). |
Control of the guard locking solenoid
The guard locking solenoid can be controlled via AS-Interface bus bit D0 or via the auxiliary power.
AS-Interface inputs
| D0, D1 | Door monitoring |
| D2, D3 | Guard lock monitoring |
Evaluation is performed via a safety monitor.
AS-Interface outputs
| D0 | Guard locking |
LED function display
- The ASI LED indicates the state of the ASi bus.
- The STATE LED indicates the state of the switch.
- The LOCK/DIA LED indicates if the door is locked and whether a fault has been detected in the switch.
| Housing material | |
| Switch head cover | Die-cast zinc |
| Safety switch housing | Fiber glass reinforced thermoplastic |
| Weight | |
| Net | 0,42 kg |
| Ambient temperature | -20 … +55 °C |
| Degree of protection | IP67 / IP69 / IP69K |
| Resilience to vibration | In acc. with EN IEC 60947-5-3 |
| Mechanical life | 1 x 106 |
| Installation orientation | Any |
| Ready delay | max.1 s |
| Switching frequency | max.0,5 Hz |
| Connection | 1 plug connector M12, 4-pin |
| Approach speed | 20 m/min |
| Guard locking principle | Open-circuit current principle |
| Locking force Fmax | 3900 N |
| Locking force FZh | 3000 N |
| Retention force | 20 N |
| Extraction force | 20 N |
| Actuating force | 10 N |
| Overtravel | 5 mm |
Electrical connection ratings
| ASi voltage | 30 V 26,5 … 31,6 V |
| ASi operating current | 50 mA |
| ASi auxiliary voltage | |
| IEC 60742, PELV | 24 V -15% … +10% |
| ASi auxiliary current | 400 mA |
| ASi slave type | |
| According to ASI specification 3.0 | EA code: 7 |
| ID code: B | |
| ASi data in | |
| According to As-i Safety at Work | D0 |
| D1 | |
| D2 | |
| D3 | |
| ASi data out | |
| Guard locking solenoid | D0 |
| Safety class | |
| EN IEC 61140 | III |
Work area
| Repeat accuracy R | 10 % |
Other
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures see operating instructions |
Reliability values according to EN ISO 13849-1
| Performance Level | PL e |
| Category | 4 |
| PFHD | 4.3 x 10 -9 |
| Mission time | 20 y |
