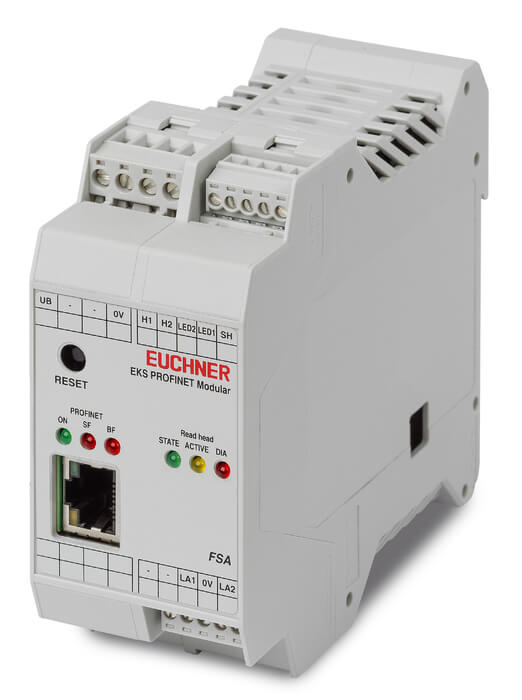

Euchner EKS-A-AIXA-G18 (Order no. 122353)

  • Interface adapter with PROFINET IO interface
  • read/write system
  • Usage in conjunction with Electronic-Key adapter FHM
  • A complete read/write station comprises an Electronic-Key adapter FHM and a modular interface adapter
  • Transfers the data from the Electronic-Key to a control system for processing
  • Connection to PLC
  • PROFINET protocol, cyclic data transfer to control system
  • Interfacing via GSDML file
  • Various options for address assignment, also using DIP switches
  • IMPORTANT: The plug-in connection terminals are not included with the interface adapter and must be ordered separately.
  • Version FSA (For Safety Applications)
Описание

Dimension drawing
Wiring diagram
EKS FSA — Selection of safe operation mode with touch panels up to PL e
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6.6 gray
Ambient temperature 0 … 55 °C
Mounting method Mounting rail 35mm according to DIN EN 60715 TH35

Electrical connection ratings

Operating voltage DC 20 … 24 … 28 V DC
Current consumption
Without load max.150 mA
Connection cross-section
Electronic-Key adapter, screw terminal 5-pin 0,2 … 1,5 mm?
Semiconductor switching contact FSA, screw terminal 5-pin 0,2 … 1,5 mm?
Operating voltage, screw terminal 2×2-pin 0,2 … 2,5 mm?
Semiconductor switching contact LA
Max. capacitive load max.1 µF
Power supply 24 V max.30 V
Switching current 1 … 10 … 50 mA
Output voltage Ux0,9 … U V DC
Utilization category according to EN 60947-5-1
AC-15 24 V/50 mA
AC-12 24 V/50 mA
Utilization category according to EN 60947-5-2
DC-12 24 V/50 mA
DC-13 24 V/50 mA
Resistance
in the switched state 0,035 k?
PROFINET LED indicator
LED indicator
Profinet active / green
system error / red
bus error / red
Read head LED indicator
LED indicator
Read head readiness for operation / green
Electronic-Key in the operating distance / yellow
fault / red
PROFINET interface
Connecting cable min. 2×2 twisted pair copper cable shielded, min. cat. 5

Interface, bus

PROFINET interface
Data protocol PROFINET
Data interface Ethernet (IEEE 802.3)
Получить КП
Для получения коммерческого предложения, пожалуйста, вышлите ваш запрос на электронную почту info@euchner-tools.ru с указанием требуемых позиций и реквизитами компании.
Артикул: EKS-A-AIXA-G18 Категория:
