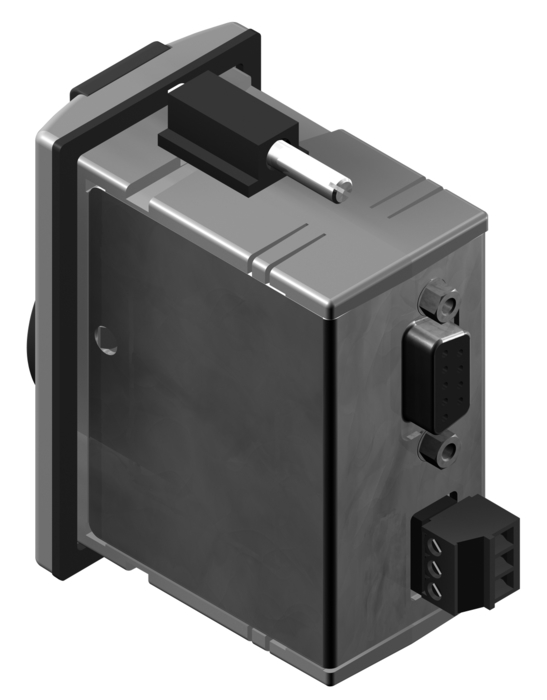

Euchner EKS-A-ISX-G01-ST09/03 (Order no. 084750)

  • Electronic-Key Adapter with serial interface RS232/RS422
  • Read/write system
  • Electronic-Key adapter and electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Transfers the data from the Electronic-Key to a control system for processing
  • Connection to PC or PLC
  • Open communication commands at the lowest level
  • 3964R protocol
  • Connection to the user software possible via ActiveX® module under Windows®
Описание

Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6-GF30 gray
Ambient temperature 0 … 55 °C
Degree of protection IP67 in the installed state (only access side)
Mounting cut-out according to DIN 43700 33 x 68 mm
Installation orientation On the front
Interface, data transfer
Connection D-Sub 9-pin RS232/RS422 can be selected via DIP switches
Cable length
max.5 m RS232
max.1000 m RS422

Electrical connection ratings

LED indicator
Green Operational
Yellow Key in operating distance
Power supply
Operating voltage DC 20 … 24 … 28 V DC
Current consumption max.100 mA
Output current max.30 mA Output OUT at 24V

Interface, bus

Interface, data transfer
Data protocol 3964R via RS232/RS422
Data rate 9600 … 28800 kbit/s Can be selected via DIP switches
Получить КП
Для получения коммерческого предложения, пожалуйста, вышлите ваш запрос на электронную почту info@euchner-tools.ru с указанием требуемых позиций и реквизитами компании.
Артикул: EKS-A-ISX-G01-ST09/03 Категория:
