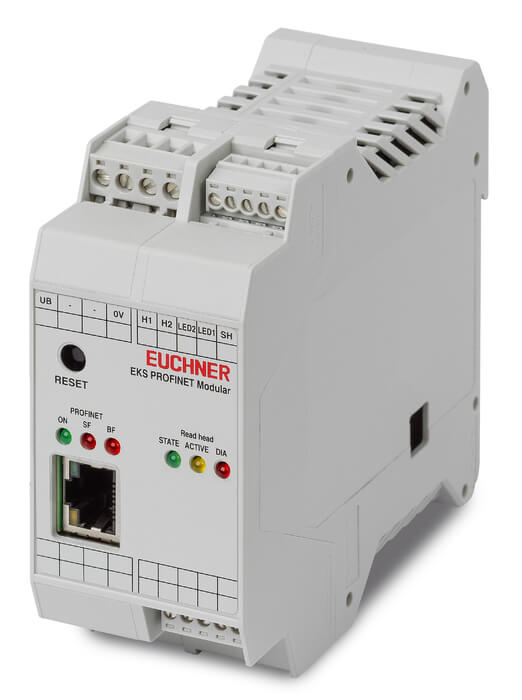

Euchner EKS-A-AIX-G18 (Order no. 122352)

  • Interface adapter with PROFINET IO interface
  • read/write system
  • Usage in conjunction with Electronic-Key adapter FHM
  • A complete read/write station comprises an Electronic-Key adapter FHM and a modular interface adapter
  • Transfers the data from the Electronic-Key to a control system for processing
  • Connection to PLC
  • PROFINET protocol, cyclic data transfer to control system
  • Interfacing via GSDML file
  • Various options for address assignment, also using DIP switches
  • IMPORTANT: The plug-in connection terminals are not included with the interface adapter and must be ordered separately.
Описание

Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6.6 gray
Ambient temperature 0 … 55 °C
Mounting method Mounting rail 35mm according to DIN EN 60715 TH35

Electrical connection ratings

Operating voltage DC 20 … 24 … 28 V DC
Current consumption
Without load max.150 mA
Connection cross-section
Operating voltage, screw terminal 2×2-pin 0,2 … 2,5 mm?
Electronic-Key adapter, screw terminal 5-pin 0,2 … 1,5 mm?
PROFINET LED indicator
LED indicator
Profinet active / green
system error / red
bus error / red
Read head LED indicator
LED indicator
Read head readiness for operation / green
Electronic-Key in the operating distance / yellow
fault / red
PROFINET interface
Connecting cable min. 2×2 twisted pair copper cable shielded, min. cat. 5

Interface, bus

PROFINET interface
Data protocol PROFINET
Data interface Ethernet (IEEE 802.3)
Получить КП
Для получения коммерческого предложения, пожалуйста, вышлите ваш запрос на электронную почту info@euchner-tools.ru с указанием требуемых позиций и реквизитами компании.
Артикул: EKS-A-AIX-G18 Категория:

Похожие товары

Euchner EKS-A-IPLA-G01-ST05/04 (Order no. 112207)
Закрыть

Euchner EKS-A-IPLA-G01-ST05/04 (Order no. 112207)

  • Electronic-Key adapter with 4-bit parallel interface
  • Simple connection
  • Read-only system
  • Electronic-Key adapter and evaluation electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Has all operating states
  • Connection to PLC
  • Version FSA (For Safety Applications)
Quick View
Euchner ANWPG ELECTRONIC KEY MANAGER (Order no. 093322)
Закрыть

Euchner ANWPG ELECTRONIC KEY MANAGER (Order no. 093322)

  • Software for key management
  • Client/server architecture, full network support
  • Access to key database and key database export/import in csv format
  • Forms and databases prepared using the demo version, light version or single-user version can continue to be used with the full version
  • Includes EKM ActiveX® module for interfacing the EKM database to any user program with ActiveX® support (e.g. for visualization)
  • Includes EKM ActiveX® module manual – order no. 093650 on CD
  • Includes additional documentation EKM (CRC definition) – order no. 093653 on CD
Quick View
Euchner ANWPG ELECTRONIC KEY MANAGER (Order no. 093322)
Закрыть

Euchner ANWPG ELECTRONIC KEY MANAGER DEMO (Order no. 093320)

  • Software for key management
  • Only local EKM client, no network support
  • Access to key database and key database export/import in csv format
  • Limited to 10 weeks runtime
Quick View
Euchner EKS-A-IPB-G01-ST05/02 (Order no. 111230)
Закрыть

Euchner EKS-A-IPL-G01-ST05/02 (Order no. 109820)

  • Electronic-Key adapter with 4-bit parallel interface
  • Simple connection
  • Read-only system
  • Electronic-Key adapter and evaluation electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Has all operating states
  • Connection to PLC
Quick View
Euchner EKS-A-APB-G08 (Order no. 113665)
Закрыть

Euchner EKS-A-APB-G08 (Order no. 113665)

  • Interface adapter with 4-bit parallel interface
  • Usage in conjunction with Electronic-Key adapter FHM
  • A complete read-only system consists of an Electronic-Key adapter FHM and a modular interface adapter
  • Simple connection
  • Read-only system
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Only operating state 0
  • Connection to PLC
Quick View
Euchner EKS-A-APB-G08 (Order no. 113665)
Закрыть

Euchner EKS-A-APR-G08 (Order no. 113647)

  • Interface adapter with 4-bit parallel interface
  • Usage in conjunction with Electronic-Key adapter FHM
  • A complete read-only system consists of an Electronic-Key adapter FHM and a modular interface adapter
  • Simple connection
  • Read-only system
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Has all operating states
  • Connection to PLC
Quick View

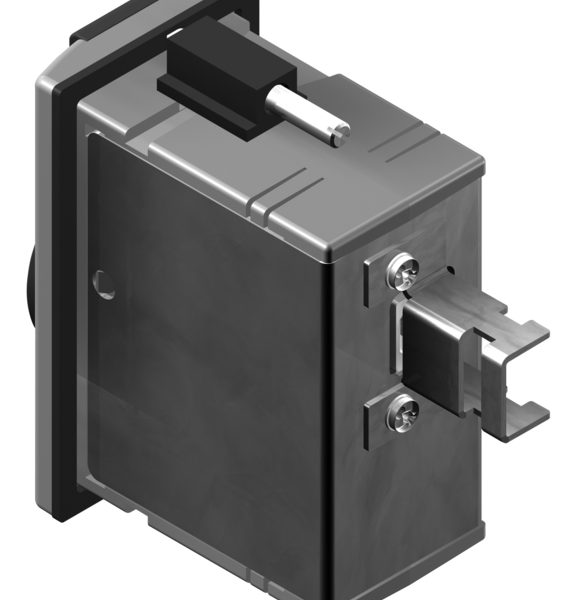

Euchner EKS-A-IUX-G01-ST01 (Order no. 092750)
