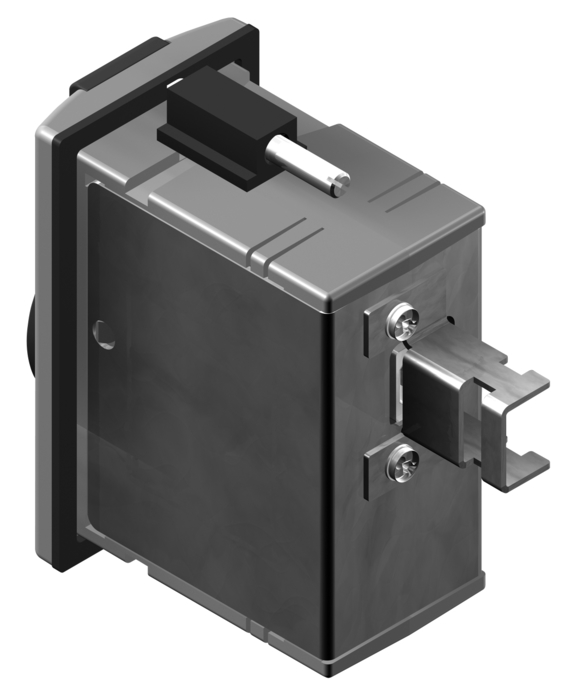

Euchner EKS-A-IUX-G01-ST01 (Order no. 092750)

  • Electronic-Key adapter with USB interface
  • read/write system
  • Power supply via USB interface
  • Electronic-Key adapter and electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Transfers the data from the Electronic-Key to a control system for processing
  • Connection to PC
  • Virtual serial COM port
  • Especially recommended for setting up a programming station on a PC
  • Open communication commands at the lowest level
  • 3964R protocol
  • Interfacing to the user software via ActiveX® module in Windows® possible
Описание

Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6-GF30 gray
Ambient temperature 0 … 55 °C
Degree of protection IP67 in installed state (only access side)
Mounting cut-out according to DIN 43700 33 x 68 mm
Installation orientation On the front
USB interface
Connection USB full speed type B
Cable length max.3 m USB

Electrical connection ratings

Current consumption max.100 mA
LED indicator
Green Operational
Yellow Key in operating distance

Interface, bus

USB interface
Data protocol 3964R via USB
Data rate 9600 … 28800 kbit/s
Получить КП
Для получения коммерческого предложения, пожалуйста, вышлите ваш запрос на электронную почту info@euchner-tools.ru с указанием требуемых позиций и реквизитами компании.
Артикул: EKS-A-IUX-G01-ST01 Категория:
