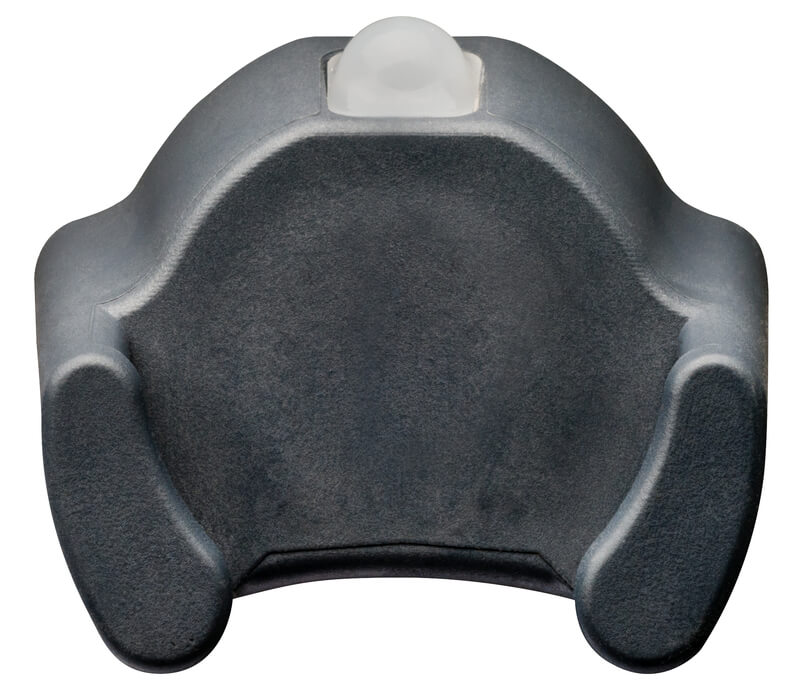

Euchner EKS-A-SFH-G30-ST150 (Order no. 116118)

  • Small design for installations where there is little space
  • Installation in standard assembly hole O 22.5 mm
  • Closed design, rounded contours for hygienic areas
  • Plastic with high resistance to media
  • IP 69K
  • Cable 0.13 m with M8 male plug
Описание

Dimension drawing
EKS FSA — Selection of safe operation mode with touch panels up to PL e
Dimension drawing
Technical dataApprovals
Mechanical values and environment

Housing material PVDF GF30 gray
Ambient temperature
-20 … 70 °C
-20 … 100 °C
Degree of protection IP65,IP67,IP69K in installed state (only access side)
Mounting method 22,5 Assembly hole in mm
Installation orientation On the front
Connection Connection cable 150 mm 4 x 0.25 mm? screened, with plug connector M8, 4-pin
Cable length max.15 m With extension cable

Electrical connection ratings

LED indicator
Green Electronic-Key adapter ready
Yellow Key in operating distance
Red Fault
