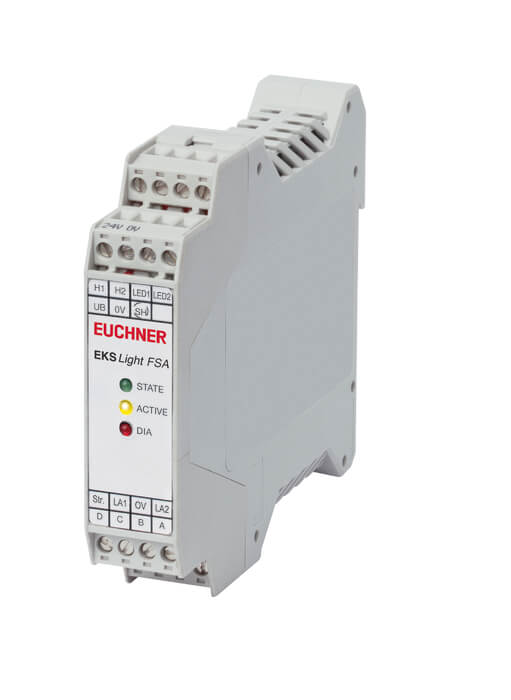

Euchner EKS-A-APB-G08 (Order no. 113665)
Previous product
Euchner EGT1/4ASEM4C1802 (Order no. 075644)
Euchner EGT1SEM4 (Order no. 019727)
Back to products
Next product
Euchner EKS-A-IEXA-G01-ST02/03/04 (Order no. 099265)
Euchner EKS-A-IEXA-G01-ST02/03/04 (Order no. 099265)

Euchner EKS-A-APR-G08 (Order no. 113647)

  • Interface adapter with 4-bit parallel interface
  • Usage in conjunction with Electronic-Key adapter FHM
  • A complete read-only system consists of an Electronic-Key adapter FHM and a modular interface adapter
  • Simple connection
  • Read-only system
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Has all operating states
  • Connection to PLC
Описание

Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6.6 gray
Ambient temperature
UB = 24 V DC 0 … 55 °C
Mounting method Mounting rail 35mm according to DIN EN 60715 TH35
Number of read heads max.1
Connection Plug-in screw terminal

Electrical connection ratings

LED indicator
Green Operational
Yellow Key in the operating distance
Red Fault
Connection cross-section 0,14 … 2,5 mm?
Power supply
Operating voltage DC 9 … 24 … 28 V DC
Current consumption max.70 mA
Interface and signaling
Switching voltage UB-2 … UB V High signal
Switching current 1 … 10 … 50 mA High signal

Interface, bus

Interface and signaling
Data interface 4-bit parallel plus strobe, binary coded via High/Low level
Получить КП
Для получения коммерческого предложения, пожалуйста, вышлите ваш запрос на электронную почту info@euchner-tools.ru с указанием требуемых позиций и реквизитами компании.
Артикул: EKS-A-APR-G08 Категория:
