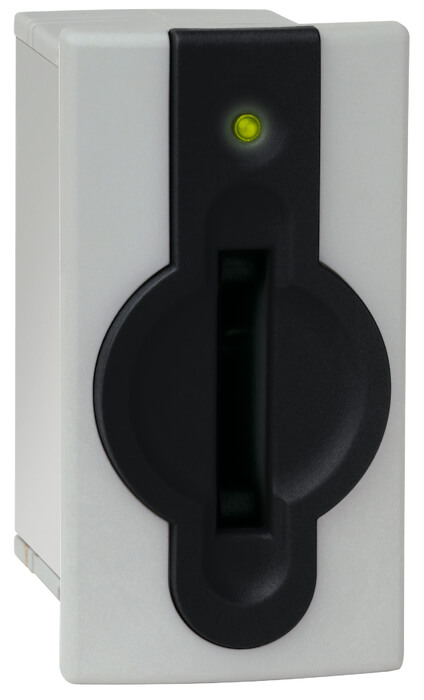

Euchner EKS-A-IPLA-G01-ST05/04 (Order no. 112207)

  • Electronic-Key adapter with 4-bit parallel interface
  • Simple connection
  • Read-only system
  • Electronic-Key adapter and evaluation electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Has all operating states
  • Connection to PLC
  • Version FSA (For Safety Applications)
Описание

Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6-GF30 gray
Ambient temperature -20 … 70 °C
Degree of protection IP67 in installed state (only access side)
Mounting method On the front
Mounting cut-out according to DIN 43700 33 x 68 mm

Electrical connection ratings

LED indicator
Green Operational
Yellow Key in operating distance
Red Fault
Connection cross-section 0,14 … 1,5 mm?
Parameters for floating semiconductor switching contact LA
Switching voltage 0 … 24 … 30 V
Switching current 1 … 10 … 50 mA In event of short circuit the output is shut down
Utilization category according to EN 60947-5-1
AC-15 24V 50mA
AC-12 24V 50mA
DC-12 24V 50mA
Utilization category according to EN 60947-5-2
DC-13 24V 50mA
Interface and signaling
Switching voltage UB-2 … UB V High signal
Switching current 1 … 10 … 50 mA High signal
Power supply
Operating voltage DC 9 … 24 … 28 V DC
Current consumption max.70 mA

Interface, bus

Interface and signaling
Data interface 4-bit parallel plus strobe, binary coded via High/Low level

Other

Parameters for floating semiconductor switching contact LA
Additional feature
35 Resistance in switched-on state in Ohm
max.1 Capacitive load on output in µF
