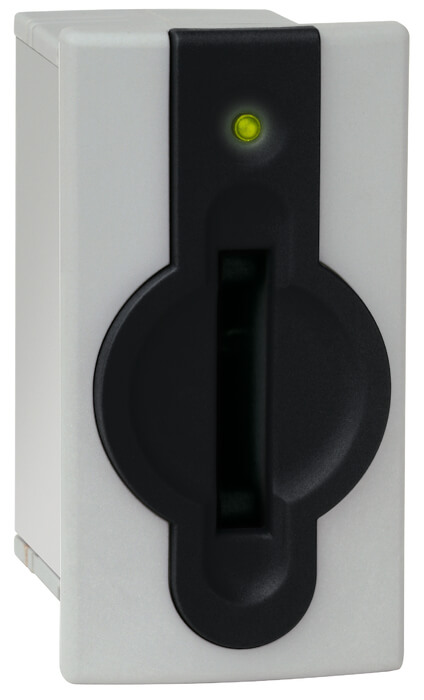

Euchner EKS-A-IPB-G01-ST05/02 (Order no. 111230)

  • Electronic-Key adapter with 4-bit parallel interface
  • Simple connection
  • Read-only system
  • Electronic-Key adapter and evaluation electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Only operating state 0
  • Connection to PLC
Описание

Dimension drawing
Wiring diagram
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment

Housing material PA6-GF30 gray/black
Ambient temperature -20 … 70 °C
Degree of protection IP67 in installed state (only access side)
Mounting method On the front
Mounting cut-out according to DIN 43700 33 x 68 mm

Electrical connection ratings

Connection cross-section 0,14 … 1,5 mm?
LED indicator
Yellow Key in operating distance
Red Fault
Green Operational
Power supply
Operating voltage DC 9 … 24 … 28 V DC
Current consumption max.70 mA
Interface and signaling
Switching voltage UB-2 … UB V High signal
Switching current 1 … 10 … 50 mA High signal

Interface, bus

Interface and signaling
Data interface 4-bit parallel plus strobe, binary coded via High/Low level
