Notes
- ActiveX module available for integrating the user’s applications (for MS Windows®-based user programs with ActiveX support)
Dimension drawing
Wiring diagram

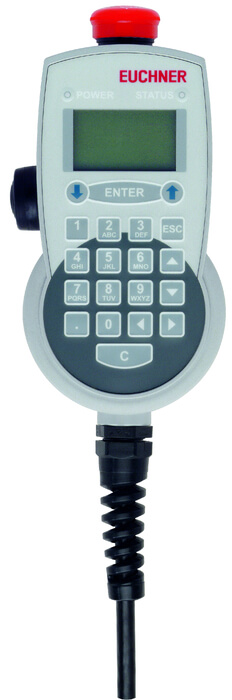

Hand-held pendant stations and hand wheels
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment
| Material | Polycarbonate |
| Weight | |
| Net | 1,2 kg |
| Ambient temperature | 0 … 50 °C |
| Atmospheric humidity | |
| Condensation not permissible | max.80 % rH |
| Degree of protection | |
| IEC529 | IP65 |
| acc. to NEMA 250 | 250-12 |
| Resilience to vibration | |
| Shock (3 axes) | DIN/IEC 68-2-27 |
| Vibrations (3 axes) | DIN/IEC 68-2-6 |
| Connection | Plug connector |
| Cable length | |
| coiled | 3,5 m |
Electrical connection ratings
| Operating voltage DC | 24 V DC -20% … 20% |
| Current consumption | max.100 mA |
| Utilization category according to EN 60947-5-1 | |
| DC-13 | max.30V / 3A |
| Switching voltage | |
| Enabling switch | max.AC/DC 42 V |
| Switching current | |
| Enabling switch | max.100 mA |
| Type of output | |
| Pulse generator | RS422 |
| Connecting cable | 23×0.14mm? |
| Breaking capacity (VA) | |
| Enabling switch | max.0,25 VA |
Interface, bus
| Data interface | RS422 |
| Data protocol | 3964R, 8 data bits, even parity |
| Data rate | max.19,2 kbit/s 9,6 kbit/s |
Controls and indicators
| Control/indicator | |
| Ausfuhrung | Emergency stop |
| Einlegeschild | |
| Extras | — |
| Farbe | Red-black with yellow label |
| Schaltelement | 2 positively driven contacts |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Enabling switch, 3-stage |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | 2 NO contacts each |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Pulse generator |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | — |
| Position | — |
| Control/indicator | |
| Ausfuhrung | Membrane keys |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | — |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | LED |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | — |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Display |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | — |
| Position | — |
Other
| Additional feature | |
| Firmware update | |
| Pulse generator | |
| Acoustic sensor | |
| Color | |
| Housing | Gray RAL 7040 |
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
