Notes
- ActiveX modules available for integrating the user’s application (for MS Windows®-based user programs with ActiveX support)
Dimension drawing
Wiring diagram

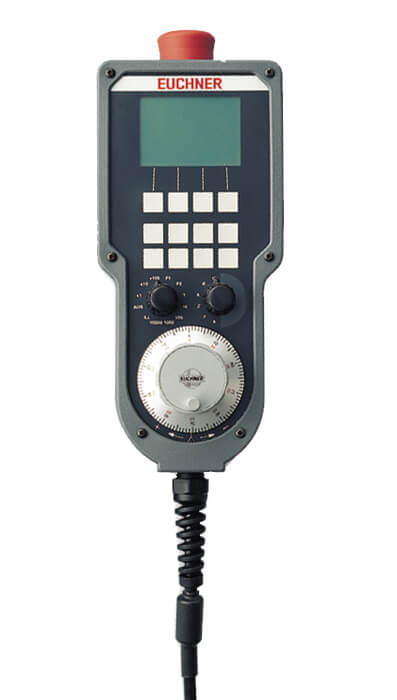

Hand-held pendant stations and hand wheels
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment
| Material | Polyamide |
| Weight | |
| Net | 2,5 kg |
| Ambient temperature | 0 … 55 °C |
| Atmospheric humidity | |
| Condensation not permissible | max.80 % rH |
| Degree of protection | |
| IEC529 | IP65 |
| acc. to NEMA 250 | 250-12 |
| Resilience to vibration | |
| Vibrations (3 axes) | DIN/IEC 68-2-6 |
| Shock (3 axes) | DIN/IEC 68-2-27 |
| Connection | Plug connector |
| Cable length | |
| straight | 3,5 m |
| Detent positions per revolution | |
| Handwheel | 100 |
Electrical connection ratings
| Operating voltage DC | 24 V DC -20% … 20% |
| Handwheel | 5 V DC -5% … 5% |
| Current consumption | 150 mA |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | max.42V / 1A |
| Switching voltage | |
| Enabling switch | DC 5 … DC 230 V |
| Switching current | |
| Enabling switch | max.3000 mA |
| Type of output | |
| Handwheel | RS422 |
| Connecting cable | 4X0.34mm?+4X0.34mm?+15X0.14mm? |
| Pulses per revolution | |
| Handwheel | 2×100 |
Interface, bus
| Data interface | RS422 |
| Data protocol | 3964R, 8 data bits, even parity |
| Data rate | max.19,2 kbit/s 9,6 kbit/s |
Controls and indicators
| Control/indicator | |
| Ausfuhrung | Emergency stop |
| Einlegeschild | |
| Extras | — |
| Farbe | Red-yellow |
| Schaltelement | 2 positively driven contacts |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Enabling switch ZSG |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | 2 NO contacts each |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Handwheel |
| Einlegeschild | |
| Extras | — |
| Farbe | Gray dial |
| Schaltelement | — |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Buttons |
| Einlegeschild | |
| Extras | Illuminated |
| Farbe | — |
| Schaltelement | — |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Selector switch |
| Einlegeschild | |
| Extras | — |
| Farbe | Black knob with arrow disk |
| Schaltelement | 12-stage, |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Display |
| Einlegeschild | |
| Extras | With background lighting |
| Farbe | — |
| Schaltelement | — |
| Position | — |
Other
| Additional feature | |
| Replaceable slide-in strips | |
| Color | |
| Housing | Blue-gray RAL 7031 |
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
