Notes
- For template for slide-in strips, see www.euchner.com (Service)
Dimension drawing
Wiring diagram

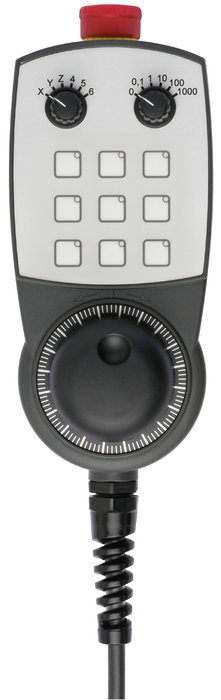

Hand-held pendant stations and hand wheels
Dimension drawingWiring diagram
Technical dataApprovals
Mechanical values and environment
| Material | Pocan |
| Weight | |
| Net | 1,5 kg |
| Ambient temperature | 0 … 50 °C |
| Atmospheric humidity | |
| Condensation not permissible | max.80 % rH |
| Degree of protection | |
| IEC529 | IP65 |
| acc. to NEMA 250 | 250-12 |
| Resilience to vibration | |
| Vibrations (3 axes) | DIN/IEC 68-2-6 |
| Shock (3 axes) | DIN/IEC 68-2-27 |
| Connection | Open end |
| Cable length | |
| coiled | 3,5 m |
| Detent positions per revolution | |
| Handwheel | 100 |
Electrical connection ratings
| Operating voltage DC | |
| Handwheel | 5 V DC -5% … 5% |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 30V DC / 1A |
| Switching voltage | |
| Membrane keypad | max.AC/DC 42 V |
| Enabling switch | max.AC/DC 42 V |
| Selector switch | max.15 V |
| Switching current | |
| Enabling switch | max.100 mA |
| Selector switch | 0,1 … 20 mA |
| EMC protection requirements | |
| Acc. to CE | EN 61000-6-2, EN 61000-6-4 |
| Type of output | |
| Handwheel | RS422 |
| Connecting cable | 42×0.14mm? |
| Pulses per revolution | |
| Handwheel | 2×100 |
| Breaking capacity (VA) | |
| Enabling switch | max.1 VA |
| Membrane keypad | max.1 VA |
| Selector switch | max.0,2 VA |
| Power supply LED | max.24 V DC |
Controls and indicators
| Control/indicator | |
| Ausfuhrung | Emergency stop |
| Einlegeschild | |
| Extras | — |
| Farbe | Red-yellow |
| Schaltelement | 2 positively driven contacts |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Enabling switches, 3-stage |
| Einlegeschild | |
| Extras | — |
| Farbe | — |
| Schaltelement | 2 NO contacts |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Membrane key |
| Einlegeschild | |
| Extras | Can be labeled using slide-in strips |
| Farbe | — |
| Schaltelement | 1 NO contact each |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Selector switch |
| Einlegeschild | |
| Extras | — |
| Farbe | Black knob with marking |
| Schaltelement | 6-stage, Gray coded, detent angle 22.5° |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Selector switch |
| Einlegeschild | |
| Extras | — |
| Farbe | Black knob with marking |
| Schaltelement | 5-stage, Gray coded, detent angle 22.5° |
| Position | See data sheets |
| Control/indicator | |
| Ausfuhrung | Handwheel |
| Einlegeschild | |
| Extras | — |
| Farbe | Black plastic adjusting wheel |
| Schaltelement | — |
| Position | See data sheets |
Other
| Additional feature | |
| Exchangeable slide-in strips | |
| Color | |
| Housing | Anthracite |
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
