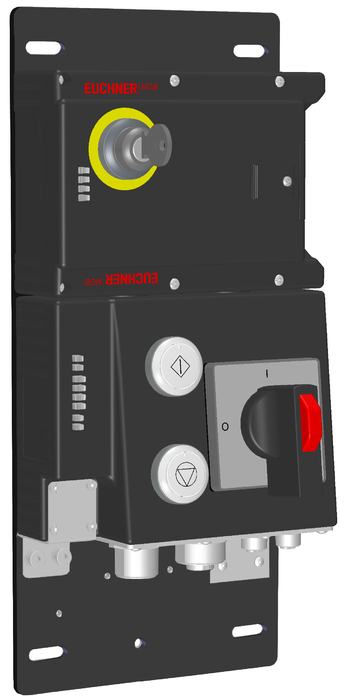

Profinet connection
7/8″ plugs according to ANSI/B93.55M-1981 and M12 plugs (d-coded) according to IEC 61076-2-101
Profinet RT switch
Point-to-point topology network structure due to integrated RT switch.
Dimension drawing
Dimension drawing
Technical dataApprovals
Mechanical values and environment
| Housing material | Reinforced plastic, die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 3,1 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 … 55 °C |
| Degree of protection | IP42 |
| Resilience to vibration | In accordance with EN 60947-5-3 |
| Mechanical life | 1 x 106 |
| In case of use as door stop, and 1 Joule impact energy | 0,1 x 106 |
| Installation orientation | Door hinge DIN right |
| Reaction time | |
| Operating mode selector switch | max.220 ms Switch-off time |
| Door position | max.550 ms Switch-off time |
| Bolt position | max.550 ms Switch-off time |
| Switching frequency | 0,25 Hz |
| Connection | 7/8″ Power |
| Acc. to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12 D-coded, screened |
| M12 D-coded, screened | |
| 7/8″ Power |
Electrical connection ratings
| Current consumption | max.500 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 0,5 kV |
| Maximum feed-in current in the connection block | |
| X1, X2 | max.4000 mA |
| EMC protection requirements | In accordance with EN 61000-4 and EN 61326-3-1 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | |
| Ethernet | Profinet I/O cable, at least cat. 5e |
| Safety class | III |
| Transponder coding | Unicode |
| Power supply X1 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
| Fusing | |
| external | min.1 A Slow blow |
| Power supply X2 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
Work area
| Assured switch-off distance Sar | max.65 mm |
Interface, bus
| Data interface | |
| Data protocol | |
| Bus protocol | Profinet (IEC 61158 type 10) |
| Safety protocol | Profisafe (IEC 61784-3-3) |
Controls and indicators
| Belegungsschema | L1 |
| Belegungsschema | B4 |
| Position 1 | |
| Ausfuhrung | Key-operated switch |
| Einlegeschild | |
| Extras | |
| Farbe | |
| Schaltelement | 1NO |
| Position 90 | |
| Ausfuhrung | Illuminated push buttons |
| Einlegeschild | |
| Extras | Printed |
| Farbe | white |
| Schaltelement | 1NO |
| Position 91 | |
| Ausfuhrung | Operating mode selector switch |
| Einlegeschild | O ; I |
| Extras | |
| Farbe | |
| Schaltelement | Code 2 of 3 |
| Position 92 | |
| Ausfuhrung | Illuminated push buttons |
| Einlegeschild | |
| Extras | Printed |
| Farbe | white |
| Schaltelement | 1NO |
Other
| Product version number | V3.30.10 |
Reliability values according to EN ISO 13849-1
| Monitoring of the position of the safety guard | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.07 x 10-8 |
| Diagnostic Coverage (DC) | 99 |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Selector switch evaluation | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.1 x 10-8 |
| Mission time | 20 |
