Profinet connection
7/8″ plugs according to ANSI/B93.55M-1981 and M12 plugs (d-coded) according to IEC 61076-2-101
Profinet RT switch
Point-to-point topology network structure due to integrated RT switch.
Dimension drawing
MGB: The MGB-System in use
MGB: MGB Impact test
MGB: Mounting left door, with escape release
Mounting left door, without escape release
Mounting right door, without escape release
MGB: Deactivating guard lock monitor
MGB: Activating guard lock monitor
MGB: Activating release monitoring
MGB: Change color-lens push button
Dimension drawing
Technical data
Interlocking module MGB-L0B-PNA-R-113614 (Order no. 113614)
Mechanical values and environment
| Housing material | Reinforced plastic, die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 3,1 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 … 55 °C |
| Degree of protection | IP42 |
| Resilience to vibration | In accordance with EN 60947-5-3 |
| Mechanical life | 1 x 106 |
| In case of use as door stop, and 1 Joule impact energy | 0,1 x 106 |
| Installation orientation | Door hinge DIN right |
| Reaction time | |
| Operating mode selector switch | max.220 ms Switch-off time |
| Door position | max.550 ms Switch-off time |
| Bolt position | max.550 ms Switch-off time |
| Switching frequency | 0,25 Hz |
| Connection | 7/8″ Power |
| Acc. to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12 D-coded, screened |
| M12 D-coded, screened | |
| 7/8″ Power |
Electrical connection ratings
| Current consumption | max.500 mA |
| Rated insulation voltage Ui | 75 V |
| Rated impulse withstand voltage Uimp | 0,5 kV |
| Maximum feed-in current in the connection block | |
| X1, X2 | max.4000 mA |
| EMC protection requirements | In accordance with EN 61000-4 and EN 61326-3-1 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connecting cable | |
| Ethernet | Profinet I/O cable, at least cat. 5e |
| Safety class | III |
| Transponder coding | Unicode |
| Power supply X1 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
| Fusing | |
| external | min.1 A Slow blow |
| Power supply X2 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% … 10% |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% … +10% |
Work area
| Assured switch-off distance Sar | max.65 mm |
Interface, bus
| Data interface | |
| Data protocol | |
| Bus protocol | Profinet (IEC 61158 type 10) |
| Safety protocol | Profisafe (IEC 61784-3-3) |
Other
| Product version number | V3.30.10 |
Reliability values according to EN ISO 13849-1
| Monitoring of the position of the safety guard | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.07 x 10-8 |
| Diagnostic Coverage (DC) | 99 |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Selector switch evaluation | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 4.1 x 10-8 |
| Mission time | 20 |
Handle module MGB-H-AA1A6-R-111838 (Order no. 111838)
Mechanical values and environment
| Housing material | Reinforced plastic, die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 1,00 kg |
| Ambient temperature | -20 … 55 °C |
| Degree of protection | IP65 |
| Installation orientation | Door hinge DIN right |
Other
| Additional feature | With mounting plate and automatic lockout mechanism |
| Product version number | V3.0.0 |

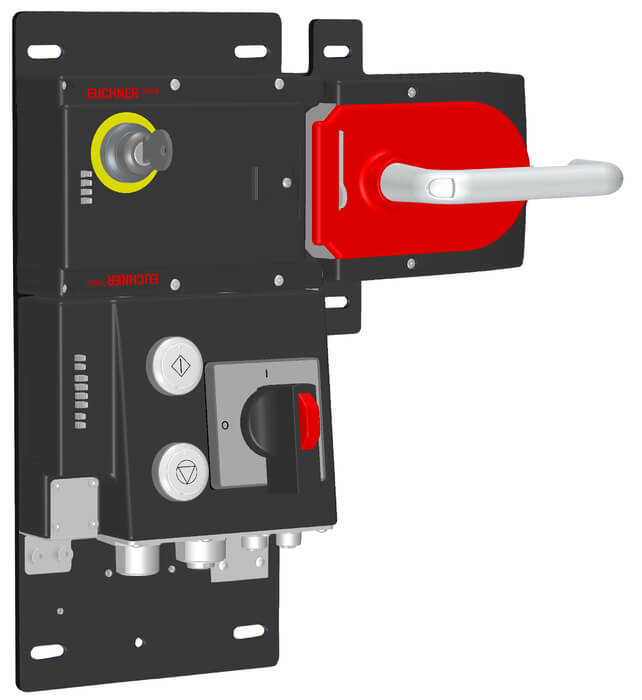

Components
113614
Interlocking module MGB-L0B-PNA-R-113614
- Locking (without guard locking)
- With key-operated switch (form V, 90°)
- 2 white pushbuttons illuminated with symbol
- Operating mode selector switch
- Connection via 7/8″ and M12 plug
- Pre-assembled on mounting plates
- Integrated Profinet RT switch
- Unicode
111838
Handle module MGB-H-AA1A6-R-111838
- Intelligent bolt tongue
- Fold-out lockout mechanism
- Second automatically extending lockout mechanism
- Door handle
- Mounting plate
