Guard locking type

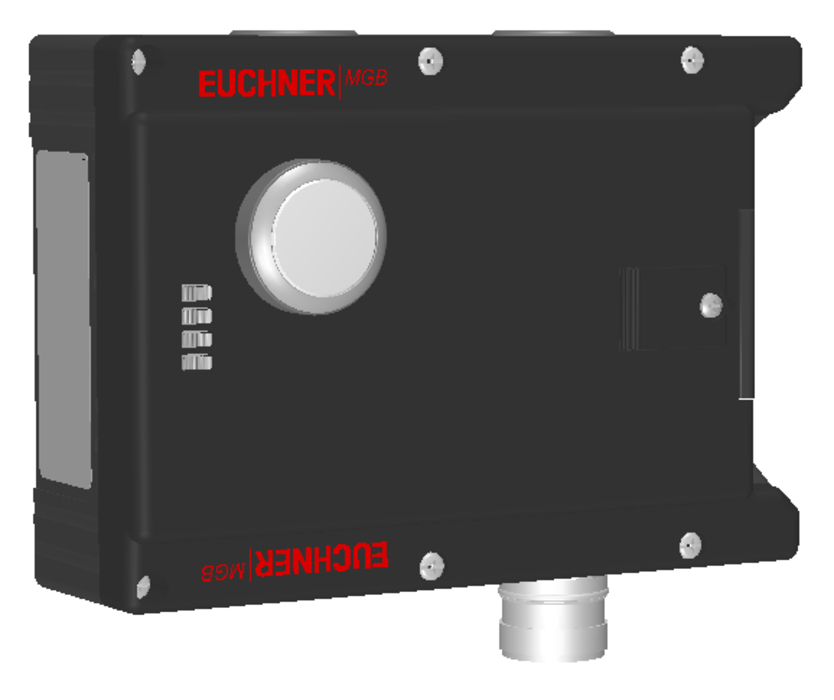

| MGB-L1… | The locking arm is held in the locked position by spring force and is unlocked by solenoid force (closed-circuit current principle, mechanically locked). |
Door hingeA mechanical door stop is permanently integrated into the evaluation module of the MGB. A marking on the stop makes adjustment easier.
LED indicatorThe LED indicator indicates all important system and status information.
Monitoring outputs
| OT | Bolt tongue inserted in the evaluation module |
| OL | Guard locking solenoid in locked position |
| OI | Diagnostics; there is a fault |
Pushbutton
| S1 | 1 NO contact, illuminated |
Lens setThe color of the pushbutton can be selected using the lens set included (5 colors). Item no.: 120344 (see Accessories)
Dimension drawing
Dimension drawing
Plug connector RC18
MGB: The MGB-System in use
MGB: MGB Impact test
MGB: Mounting left door, with escape release
Mounting left door, without escape release
Mounting right door, without escape release
MGB: Changing single wiring (AP) to series wiring (AR)
MGB: Deactivating guard lock monitor
MGB: Activating guard lock monitor
MGB: Activating release monitoring
MGB: Change color-lens push button
Dimension drawingDimension drawingPlug connector RC18
Technical dataApprovals
Mechanical values and environment
| Housing material | Reinforced plastic; die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 0,75 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 … 55 °C |
| Degree of protection | IP65 |
| Mechanical life | 1 x 106 |
| In case of use as door stop, and 1 Joule impact energy | 0,1 x 106 |
| Installation orientation | Door hinge DIN right |
| Switching frequency | 0,25 Hz |
| Connection | Plug connector RC18 |
| Guard locking principle | Closed-circuit current principle |
| Locking force FZh | 2000 N |
Electrical connection ratings
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 24V 200mA |
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Safety class | III |
| Discrepancy time | |
| Between FO1A and FO1B | max.10 ms |
| Risk time according to EN 60947-5-3 | max.350 ms |
| Transponder coding | Unicode |
| Power supply UB | |
| Operating voltage DC | |
| UB | 24 V DC -15% … 10% |
| Current consumption | |
| IUB | max.80 mA |
| Power supply UA | |
| Operating voltage DC | |
| UA | 24 V DC -15% … 10% |
| Current consumption | |
| IUA | max.375 mA |
| Safety outputs FO1A, FO1B | |
| Test pulses | max.1 ms |
| Test-pulse interval | min.100 ms |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| UFO1A /UFO1B HIGH | UB-2V … UB V DC |
| UFO1A /UFO1B LOW | 0 … 1 V DC |
| Output current | |
| Per safety output FO1A / FO1B | 1 … 200 mA |
| Monitoring outputs OD, OT, OL, OI | |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V … UA V DC |
| Output current | max.50 mA |
| Controls and indicators | |
| Switching voltage | UA V |
| Switching current | 1 … 10 mA |
| Breaking capacity | max.0,25 W |
| Power supply LED | 24 V DC |
| Solenoid control input IMP1, IMP2, IMM | |
| Test pulses | max.5 ms |
| Test-pulse interval | min.100 ms |
Controls and indicators
| Belegungsschema | L1 |
| Position 1 | |
| Ausfuhrung | Illuminated push buttons |
| Einlegeschild | |
| Extras | |
| Farbe | |
| Schaltelement | 1NO |
Other
| Additional feature | Incl. cover set ID. No. 120344 |
| Product version number | V3.0.3 |
Reliability values according to EN ISO 13849-1
| Monitoring of guard locking and the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.7 x 10-9 |
| Control of the guard locking | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 2.8 x 10-9 |
| Mission time | 20 y |
