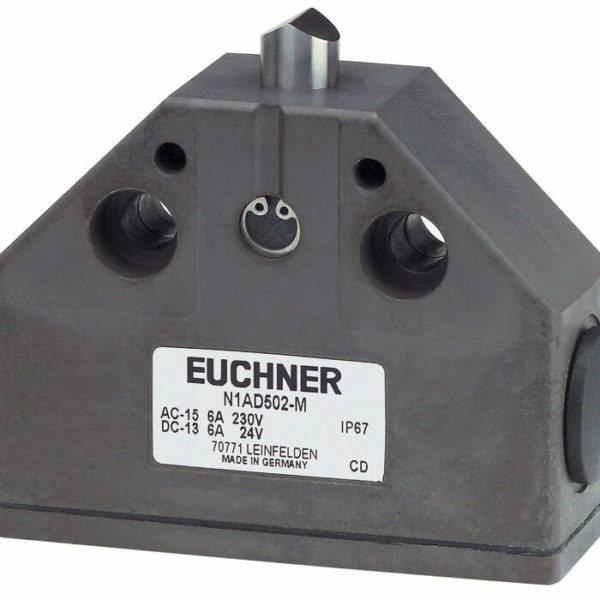

Technical dataApprovals
Mechanical values and environment
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,07 kg |
| Ambient temperature | -5 … 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 10 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Changeover contact with snap-action function |
| Installation orientation | Any |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 Changeover contact |
| Connection | |
| 1 x | Plug connector M12 |
| Approach speed | |
| max. | 0,01 … 8 m/min |
| Actuating element | |
| Steel ball D ball = 4mm | Ball plunger |
| Actuating force | 15 … 20 N |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| DC-13 | 2A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 2 kV |
| Switching current | |
| Min. at DC 24V | 10 mA |
Other
| C number | |
| C1526 |
