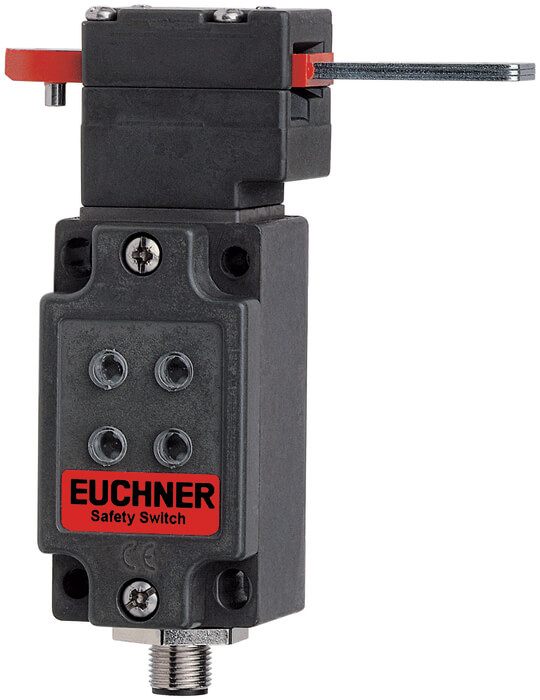

AS-Interface inputs
| D0, D1 | Positively driven NC contact 1 |
| D2, D3 | Positively driven NC contact 2 |
Evaluation is performed via a safety monitor.
AS-Interface outputs
| D1 | Red LED |
| D2 | Green LED |
LED function display
- The Power LED indicates the operating voltage on the bus.
- The Fault LED indicates if a fault has been detected on the AS-Interface bus.
- The green and the red LEDs can be controlled as required by the control system via the bus using bits D1 and D2.
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 1,2 kg |
| Ambient temperature | -25 … 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 2 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | |
| According to As-i Safety at Work | 2 D0,D1,D2,D3 |
| Connection | |
| 1 x | Plug connector M12 |
| Approach speed | |
| max. | 20 m/min |
| Actuation frequency | 1200 1/h |
| Retention force | 8 N |
| Extraction force | 35 N |
| Actuating force | 35 N |
| Insertion depth | 52 mm |
Electrical connection ratings
| ASi voltage | 30 V 22,5 … 31,6 V |
| ASi operating current | max.45 mA |
| ASi slave type | |
| According to ASI specification 2.1 | EA code: 7 |
| ID code: B | |
| ASi data in | |
| According to ASI safety at work | D0,D1,D2,D3 |
| ASi data out | |
| LED red | D1 |
| LED green | D2 |
| ASi LED | |
| LED green | Power |
| LED red | Fault |
Reliability values according to EN ISO 13849-1
| B10D | 4,5 x 106 |
In combination with Actuator BETAETIGER-Z-GMechanical values and environment
| Overtravel | 4 mm |
In combination with Actuator BETAETIGER-Z-GNMechanical values and environment
| Overtravel | 16 mm |
