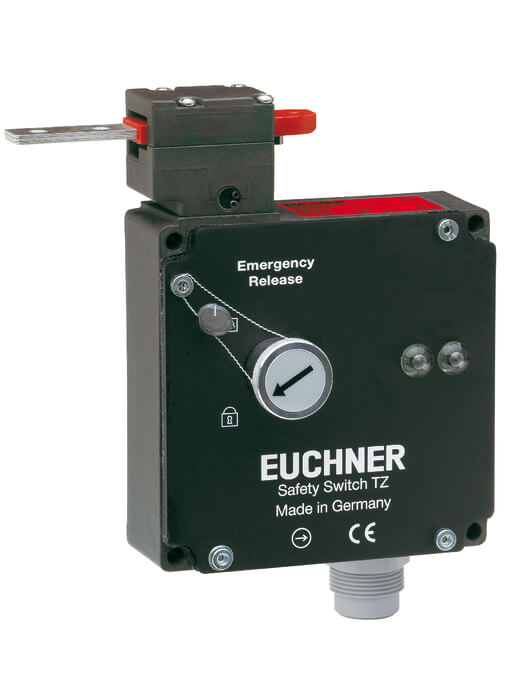

Approach direction
Horizontal
Can be adjusted in 90° steps
Protective plate for switch headMakes it more difficult to tamper with the switch.
Solenoid operating voltage and LED function display
- 24 V AC/DC -15%, +10%
Guard locking type
| TZ1 | Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid. |
Switching element
| SK | For monitoring the door/actuator position |
| UK | For monitoring the guard locking (built-in solenoid) |
| 528H | Slow-action switching contact 1 NC + 1 NO |
Emergency unlockingIs used for the manual release of the guard locking without tools. The emergency unlocking mechanism must be returned to the locked state manually. Sealing can be fitted to protect against tampering. Lead seal kit and tool included (already pre-assembled on versions with plug connectors).
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 1,2 kg |
| Ambient temperature | -25 … 80 °C |
| Degree of protection | IP65 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | 1 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 1 |
| Number of guard lock monitoring NO contacts | 1 |
| Connection | |
| 1 x | Plug connector SR11 |
| Approach speed | max.20 m/min |
| Actuation frequency | 1200 1/h |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Retention force | 10 N |
| Extraction force | 30 N |
| Actuating force | 35 N |
| Insertion depth | min.52 mm |
| Cover lid | Black |
Electrical connection ratings
| Thermal rated current Ith | 4 A 70°C => 2A’> |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 4A 50V 70°C => 2A’> |
| DC-13 | 4A 24V 70°C => 2A’> |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% … +10% |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG 70°C => 2A gG’> |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Power consumption | 10 W |
| Solenoid duty cycle | 100 % |
| LED indicator | Operating voltage corresponds to the solenoid voltage |
Other
| C number | |
| 094342 | With mechanical release and protective plate |
Reliability values according to EN ISO 13849-1
| Control of the guard locking | |
| Category | Depending on external control of guard locking |
| Performance Level | Depending on external control of guard locking |
| PFHD | Depending on external control of guard locking |
| Monitoring of guard locking and the safety guard position | |
| B10D | 3 x 106 |
In combination with Actuator BETAETIGER-Z-GNMechanical values and environment
| Overtravel | 16 mm |
In combination with Actuator BETAETIGER-Z-GMechanical values and environment
| Overtravel | 4 mm |
