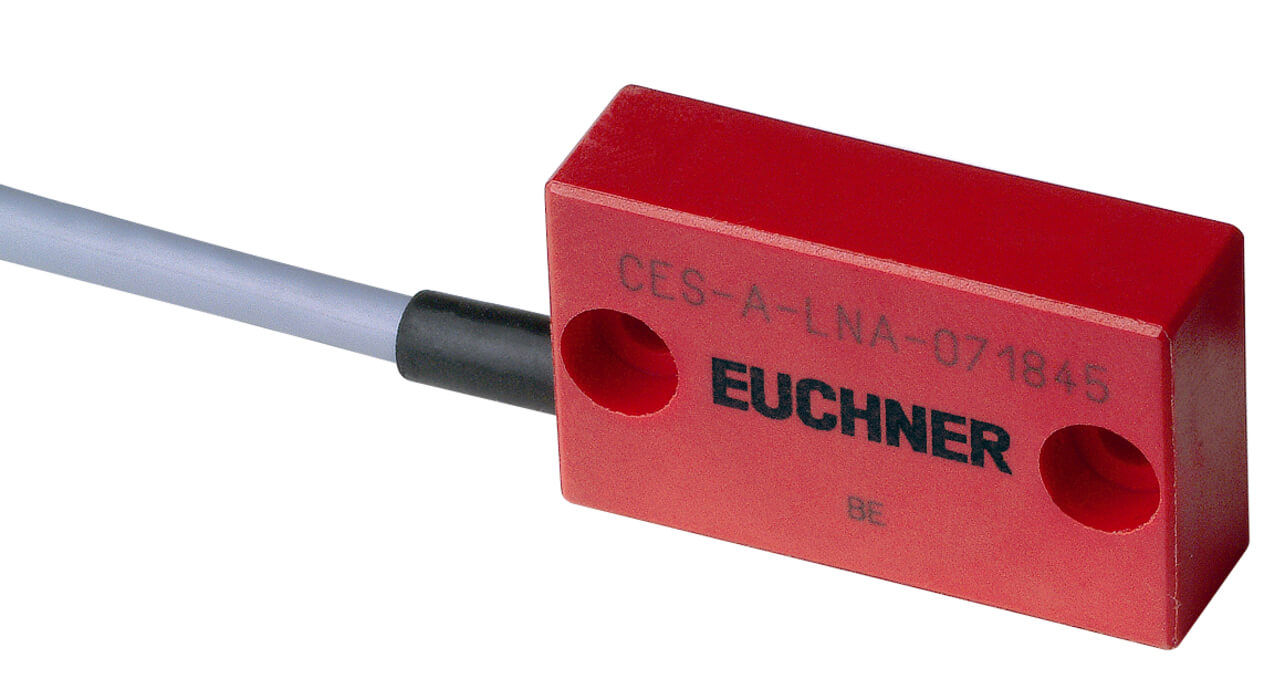

Housing materialFortron, reinforced thermoplastic, fully encapsulated.
Attention: The operating distance may vary depending on the background material and installation situation.
Important: Actuators must be ordered separately!
Typical operating distance
For a side approach direction for the actuator and read head, a minimum distance of s = 3 mm must be maintained so that the operating distance of the side lobes is not entered.
| Housing material | Reinforced thermoplastic (PPS), fully encapsulated |
| Weight | |
| Net | 0,3 kg |
| Ambient temperature | |
| Cable static | -25 … 70 °C |
| Cable dynamic | -5 … 70 °C |
| Degree of protection | IP67/IP69K |
| Installation orientation | Any |
| Tightening torque | |
| Fixing screws | max.1 Nm |
| Connection | Hard-wired encapsulated connection cable |
| Cable length | |
| Maximum allowed | max.25 m |
| Method of operation | Inductive |
Electrical connection ratings
| Power supply | Via evaluation unit |
| Connecting cable | PVC, length 5m, O 4.6 mm, with crimped ferrules |
