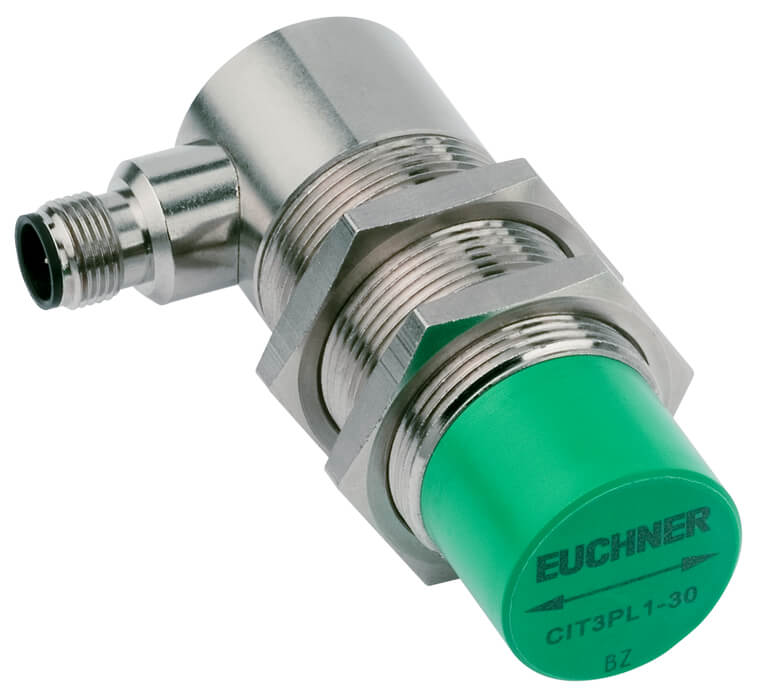

| Housing material | CuZn, nickel-plated |
| Ambient temperature | 0 … 50 °C |
| Degree of protection | IP67 |
| Mounting method | Surface |
| Connection | M12 plug, 8-pin, radial connection |
Electrical connection ratings
| Operating voltage DC | 20 … 28 V DC |
| Current consumption | 65 … 100 mA Without load |
| Switching current | -30 … +30 mA Per output |
| Type of output | Push-Pull |
| Resistance | 4,5 k? Input resistance |
| Output voltage | |
| min.Ub — 3 V DC For HIGH level | |
| max.2 V DC For LOW level | |
| Input voltage | |
| min.15 V DC SKIP input HIGH level | |
| max.2 V DC SKIP input LOW level | |
| LED indicator | Yellow: Data carrier active |
Interface, bus
| Data interface | 4 bit binary coded + strobe |
In combination with Data carrier CIS3P35X16SH16YHNOP, CIS3P35X16SH16YHNOU, CIS3P35X16SH16YVNOP, CIS3P35X16SH16YVNOUMechanical values and environment
| Approach speed | |
| At 21°C, read distance s=7mm, center offset=0mm in Y direction, for 4 hexadecimal | max.24,6 m/min |
Operating distance
| Read distance | |
| At 21°C | 7 mm 0 … 18 mm |
| Center offset | |
| At 21°C, read distance s=7mm,in Y direction | -8 … 8 mm |
| At 21°C, read distance s=7mm,in X direction | -23 … 23 mm |
In combination with Data carrier CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOPMechanical values and environment
| Approach speed | |
| At 21°C, read distance s=5mm, center offset=0mm in Y direction, for 4 hexadecimal | max.19,2 m/min |
Operating distance
| Read distance | 5 mm 0 … 14 mm |
| Center offset | |
| At 25°C, read distance s=5mm, in Y direction | -6 … 6 mm |
| At 25°C, read distance s=5mm, in X direction | -18 … 18 mm |
