Serial interfaceThe individual commands for reading and writing the data carrier are in accordance with the common 3964R protocol and are described in the EUCHNER CIS3 system manual (order no. 071 652). For data carrier programming away from the system, a convenient WINDOWS®-compatible PC software application is available (Software Transponder Coding).

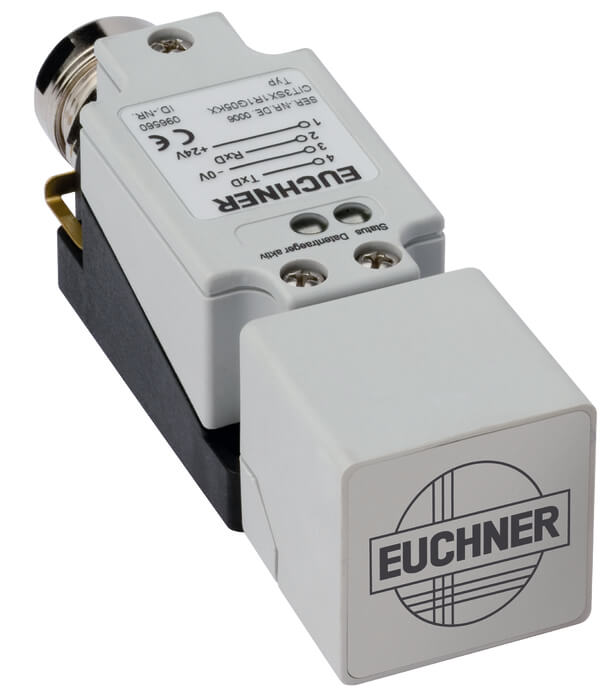

Standard housingThe size of the robust housing in degree of protection IP65 is compliant with the standard EN 50041. The division into 3 assemblies permits easy mounting and straightforward replacement.
Attention:On the usage of a screened cable the connection cable for the serial interface is allowed to be max. 5 m long.
| Housing material | Plastic |
| Ambient temperature | 0 … 55 °C |
| Degree of protection | IP65 |
| Connection | Screw terminal |
| Cable length | max.5 m RS232 |
Electrical connection ratings
| Operating voltage DC | 20 … 24 … 28 V DC |
| Current consumption | max.140 mA |
| LED indicator | |
| Green | Operational |
| Yellow | Data carrier in operating distance |
Interface, bus
| Data interface | RS232 |
| Data protocol | 3964R via RS232 8 data bits, even parity |
| Data rate | 9,6 kbit/s |
In combination with Data carrier CIS3AP50X50SH16YSNOU, CIS3AP50X50SH16YSNOPOperating distance
| Read distance | |
| At 25°C, center offset m=0mm | 0 … 20 … 28 mm |
| Center offset | |
| At 25°C, read distance s=20mm | -13 … 13 mm |
