Attention:On the usage of a screened cable the connection cable is allowed to be max. 50 m long.

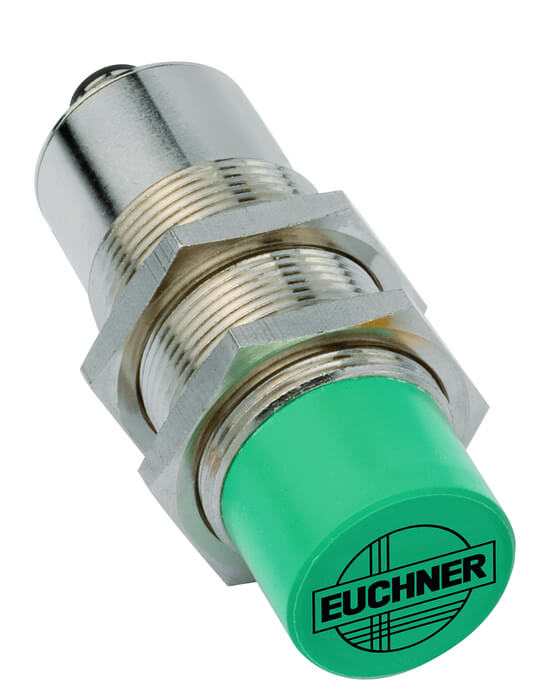

| Housing material | CuZn, nickel-plated |
| Ambient temperature | 0 … 50 °C |
| Degree of protection | IP67 |
| Mounting method | Surface |
| Connection | M12 plug, 8-pin, axial connection |
Electrical connection ratings
| Operating voltage DC | 20 … 28 V DC |
| Current consumption | 110 … 150 mA Without load |
| Switching current | -30 … +30 mA Per output |
| Type of output | Push-Pull |
| Resistance | 4,5 k? Input resistance |
| Output voltage | |
| min.Ub — 3 V DC For HIGH level | |
| max.2 V DC For LOW level | |
| Input voltage | |
| min.15 V DC SKIP input HIGH level | |
| max.2 V DC SKIP input LOW level |
Interface, bus
| Data interface | 4 bit binary coded + strobe |
In combination with Data carrier CIS3AP50X50SH16YSNOU, CIS3AP50X50SH16YSNOPMechanical values and environment
| Approach speed | |
| At 25°C, read distance s=12mm, center offset m=0mm for 4 hexadecimal digits | max.12 m/min |
Operating distance
| Read distance | |
| At 25°C, center offset m=0mm | 7 … 12 … 20 mm |
In combination with Data carrier CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOPOperating distance
| Center offset | |
| At 25°C, read distance s=12mm | -11 … 11 mm |
