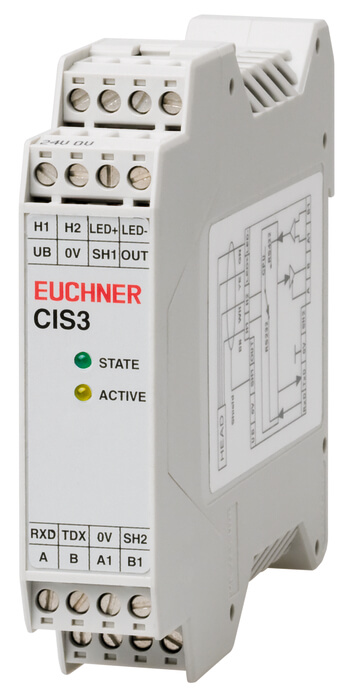

Serial interfaceThe individual commands for reading and writing the data carrier are in accordance with the common 3964R protocol and are described in the EUCHNER CIS3 system manual (order no. 084 727). For data carrier programming away from the system, a convenient WINDOWS®-compatible PC software application is available (Software Transponder Coding)
Attention:
- On the usage of a screened cable the connection cable for the serial interface is allowed to be max. 5 m long for RS232 and max. 1000 m long for RS422.
- On the usage of a screened cable the connection cable to the write/read head is allowed to be max. 15 m long.
- It is only ever possible to connect 1 read head per interface adapter.
| Housing material | PA 6.6 |
| Ambient temperature | 0 … 55 °C |
| Degree of protection | IP20 |
| Mounting method | Mounting rail 35mm according to DIN EN 60715 TH35 |
| Number of read heads | max.1 |
| Connection | Plug-in screw terminals |
| Cable length | |
| max.5 m RS232 | |
| max.1000 m RS422 |
Electrical connection ratings
| Operating voltage DC | 20 … 24 … 28 V DC |
| Current consumption | 65 mA max.100 mA |
| LED indicator | |
| Green | STATE LED operational |
| Yellow | ACTIVE LED data carrier active |
| Connection cross-section | 0,14 … 2,5 mm? |
Interface, bus
| Data protocol | 3964R via RS232/RS422 |
| Data rate | Can be selected via DIP switches |
Other
| Additional feature | |
| Moisture test (not condensing) at +50°C and 80% rel. h | |
| Vibration — IEC60068-2-6 amplitude 1mm, 10-55Hz, 3 axes | |
| Shock — IEC60068-2-27 acceleration 30g, 6 shocks per axis, 11ms/half sinewave |
In combination with Read head CIT3ASX1N12ST and Data carrier CIS3AP10D05KH01K, CIS3AP10D05KH01K-POperating distance
| Read distance | |
| With center offset m=0 | 0 … 3 … 6,5 mm |
| 0 … 3 … 6 mm | |
| 0 … 3 … 5 mm | |
| Center offset | |
| Read distance s = 3 mm | max.2,5 mm |
| Write distance s = 3 mm | max.2 mm |
| Write distance | |
| With center offset m=0 | 0 … 3 … 6 mm |
| 0 … 3 … 4,5 mm | |
| 0 … 3 … 5,5 mm |
